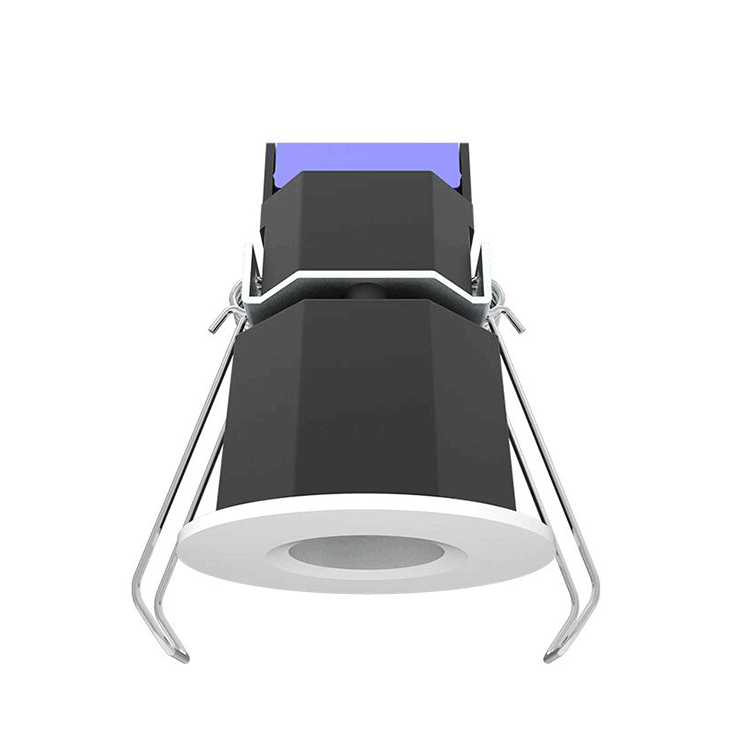

1 Inch Light Emitting Surface Round Miniature LED Downlight
/
/
/
/
/
1 Inch Light Emitting Surface Round Miniature LED Downlight

Features

– The simplified retrofit installation can be used in both new and existing spaces.

– IC Airtight for use with direct contact to insulation.

– Beam Angle: 30/60/90 Degrees.

– Life Rated for 50,000 hours at 70% lumen maintenance.

– Easy installation for new construction and remodel applications.

Specification

– Source: LED COB Chips.

– Lumen maintenance: 50,000 hours L70 based on LM80 standardized test results.

– Optics: PC Lens for even lumen distribution.

– Material: Die-cast aluminum construction for lasting quality.

– Mounting: New construction installation or remodel installation

– Electrical: High efficiency electronic driver, rated at 50 000 hours

–  Heat dissipation: Superior Thermal Management by utilizing aluminum body as heat sink.

– Warranty: 3 year limited warranty.

Listing / Warranty

ETL listed to US and Canadian standards for damp location W/Feed through.

3 Year Limited Warranty.

Applications

Suitable for jewelry stores, boutiques, luxury goods stores, shopping malls and other places that require concentrated lighting and accent lighting.

Parameter

Voltage: AC/DC12V

Watt: 8W

Dimming: Non-dimming

Lumen: 800-1000lm

Light Source: COB

CRI: 80/90+

Beam Angle: 30D/60D/90D

CCT: 2700K-5000K

Finish: White/Black/Brown

Product File Download

# File Added by File size Downloads
1 pdf BL1-001 liteharbor 999 KB 234
