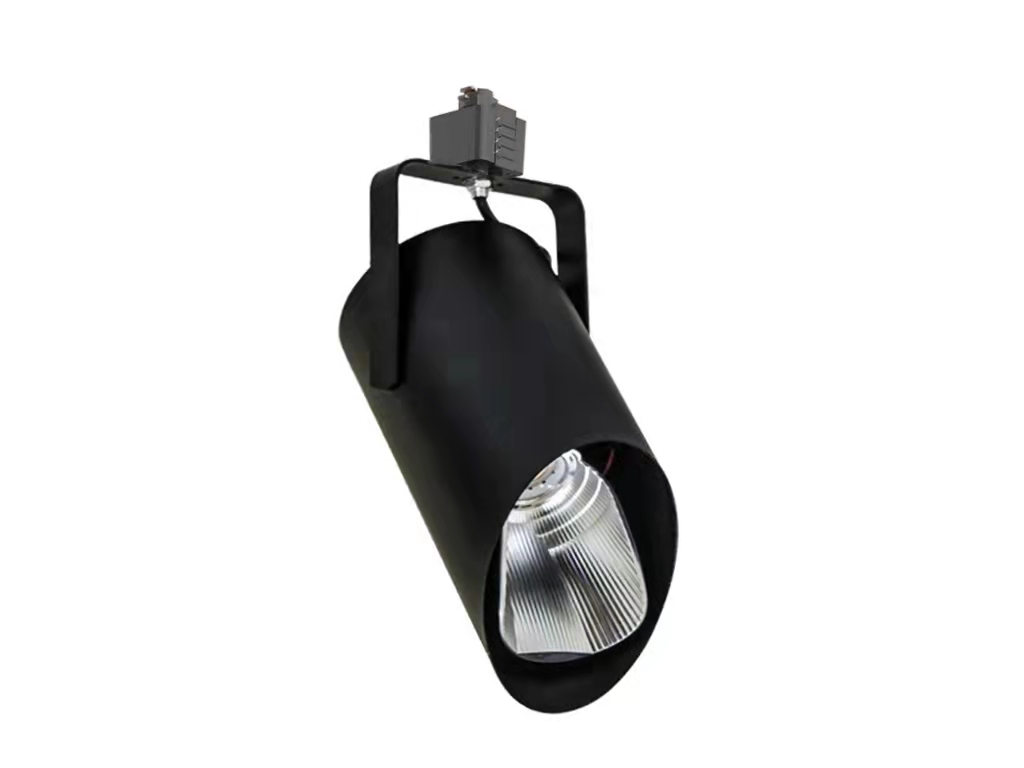

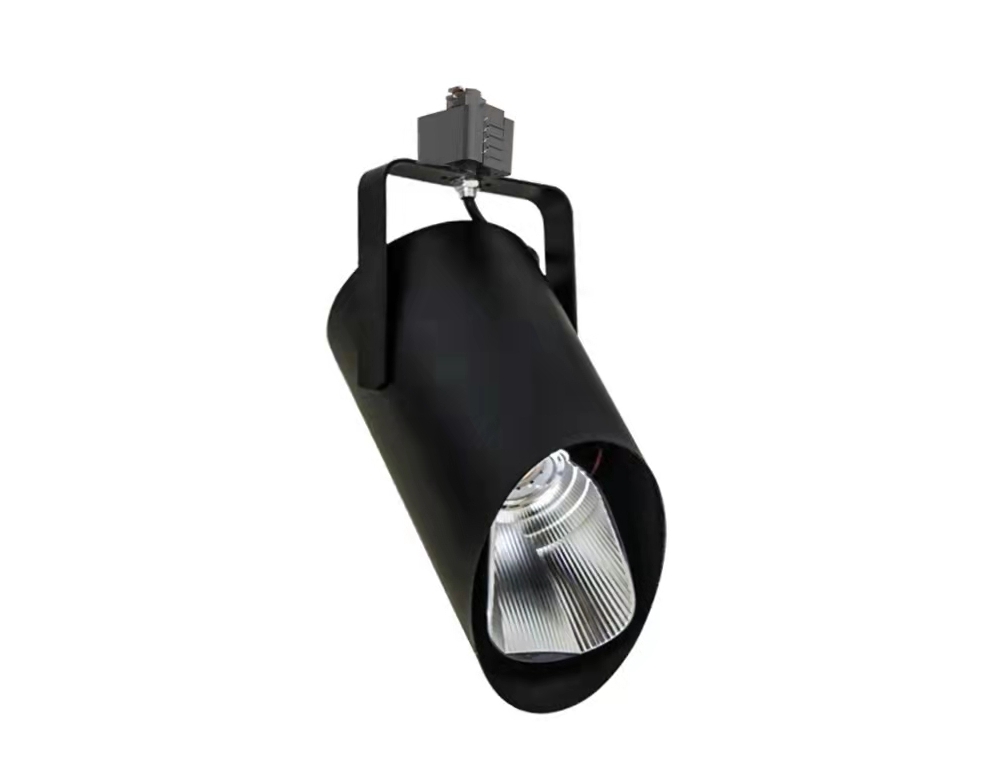

20W J/H/L Type Track System 3CCT COB LED Track Light K5063 Gallery Lighting
ITEM No.:K5063
Series : LED Track Light
Light Source : COB LED
Input volt : 120V-277V
Wattage :20W
Lumen : 100lm/W
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
DESCRIPTION
The Wall Wash Series features an asymmetrical reflector that provides even field of illumination. This distribution of light from ceiling to floor hides imperfections in the wall and smoothly eliminates shadows, adding a feeling of depth to any room.50,000 hrs average rated life.
LED Light Engine
• Color Temperature 2700K-6000K
• CRI 80+
• 3 Step MacAdam (3 SDMC)
• Passive aluminum heat sink
• Multiple connectors can share a lamp body
• 3 color temperature selectable, convenient inventory and cost savings
• 50,000 hrs average rated life
Electrical System
Trailing edge (ELV): 120V / 277V
Leading edge (Triac): 120V only
0-10V: 120V only (ControlTrac), 120-277V otherwise
IP (Integral Pot) dimming available
Lutron ecosystem premier driver available, featuring dimming to 0.1% and soft on/soft off incandescent like dimming.
Only available on fixtures 20 watts or less.
Optics
16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood
Dimming
Track Dimming
• (ELV) reverse phase control dimmers. 120V only.
• Dimmable 100 – 10%
Canopy Dimming
• ELV Dimming 120V
• 0-10V Dimming 120V or 277V
Material | Die cast aluminum |
Input Voltage | 120/277V |
Wattage | 10W/15W/20W |
CCT | 2700,3000K,3500K,4000K,5000K,6000K,3CCT |
PF | >0.98 |
CRI | 80+/90+ |
Mounting | Track Mount |
Compatibility
Track luminaire is designed for use with the following track systems:
• Single Circuit/Single Neutral 120V
• Two Circuit/Single Neutral 120V (No Dimming)
• Two Circuit / Two Neutral 120V
• Two Circuit / Two Neutral 277V
Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty
