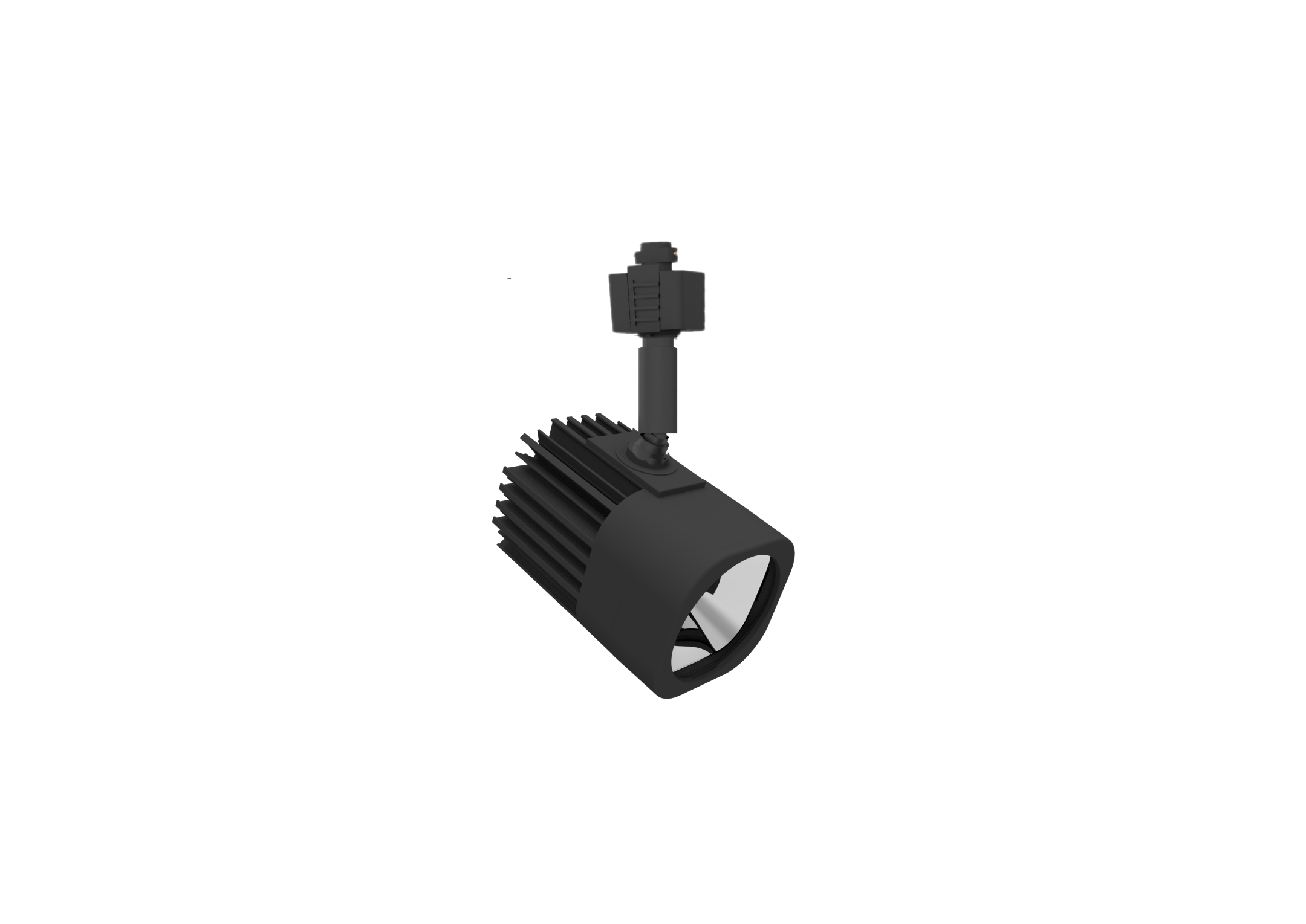

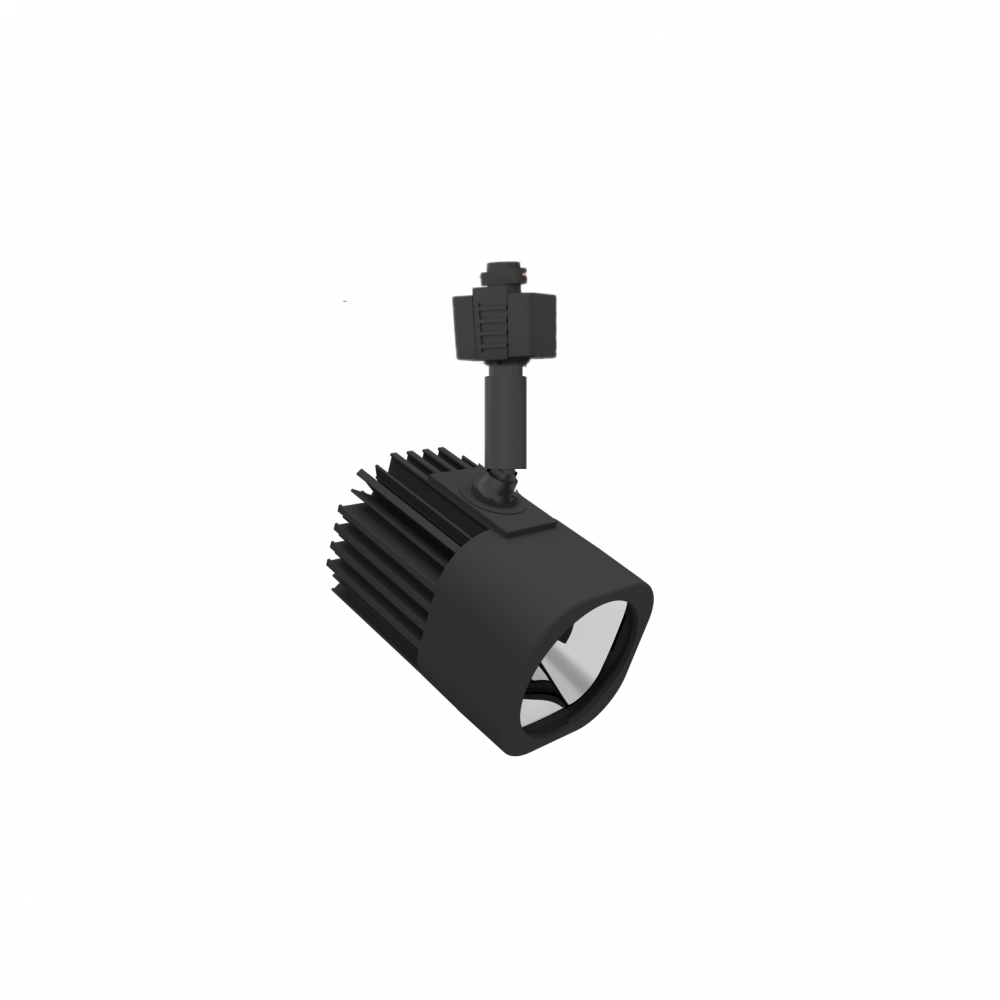

3 Rail System Combin H/J/L Type 30W COB 3CCT LED Track Light K4023M-S Kitchen Lighting
ITEM No.: K4023M-S
Series : LED Track Light
Light Source : COB LED
Input volt : 120V-277V
Wattage : 30W Max
Lumen : 100lm/W
Categories: Commercial Lighting Project, High Voltage Track Heads, Hotel Lighting Project, Shopping Mall Lighting Project, Track Heads, Track Light
Tags: Gallery Lighting, J/H/L TRACK SYSTEM, LED Track Light, Mount COB LED Track Light, Track Light
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
LED Light Engine
- Color Temperature 2700K-6000K
- CRI 80+
- 3 Step MacAdam (3 SDMC)
- Passive aluminum heat sink
- Multiple connectors can share a lamp body
- 50,000 hrs average rated life
Electrical System
- 120V/277V 50/60Hz input
- Over voltage, over current and short circuit protection: Auto recovery
- MTBF > 100,000 hours
Optics
16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood
Dimming
- Track Dimming
- (ELV) reverse phase control dimmers. 120V only.
- Dimmable 100 – 10%
- Canopy Dimming
- ELV Dimming 120V
- 0-10V Dimming 120V or 277V
Compatibility
Track luminaire is designed for use with the following track systems:
- Single Circuit/Single Neutral 120V
- Two Circuit/Single Neutral 120V (No Dimming)
- Two Circuit / Two Neutral 120V
- Two Circuit / Two Neutral 277V
DRIVER ON BOX(DOB) Solution
This simplifying the design of LED lamp save the shipping costs while expanding the scope of application of a luminaire.
The main advantages DOB LED luminaires are more reliable, have stable performance, longer service life and better resistance to extreme temperatures.
Material | Die cast aluminum |
Input Voltage | 120/277v 50/60Hz input |
Wattage | 8W/10W/12W/15W/20W/25W/30W |
CCT | 2700,3000K,3500K,4000K,5000K/6000K |
PF | >0.98 |
CRI | 80+/90+ |
Mounting | Track Mount |
Mounting
Track mount
Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty
