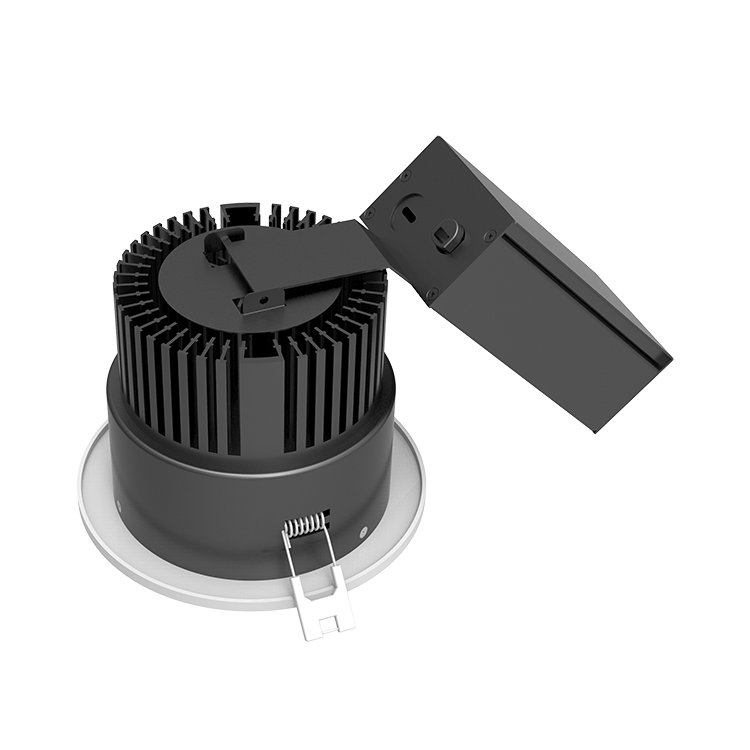

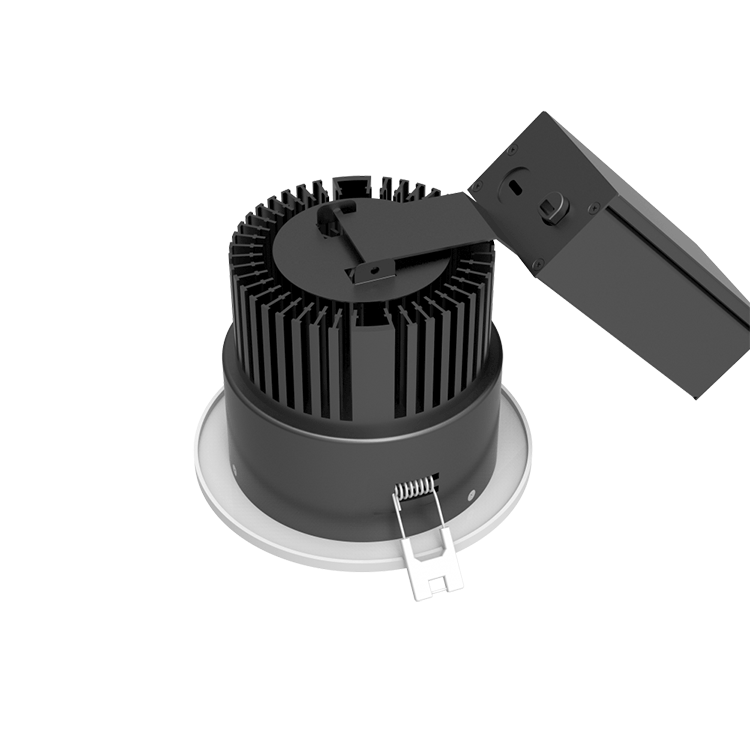

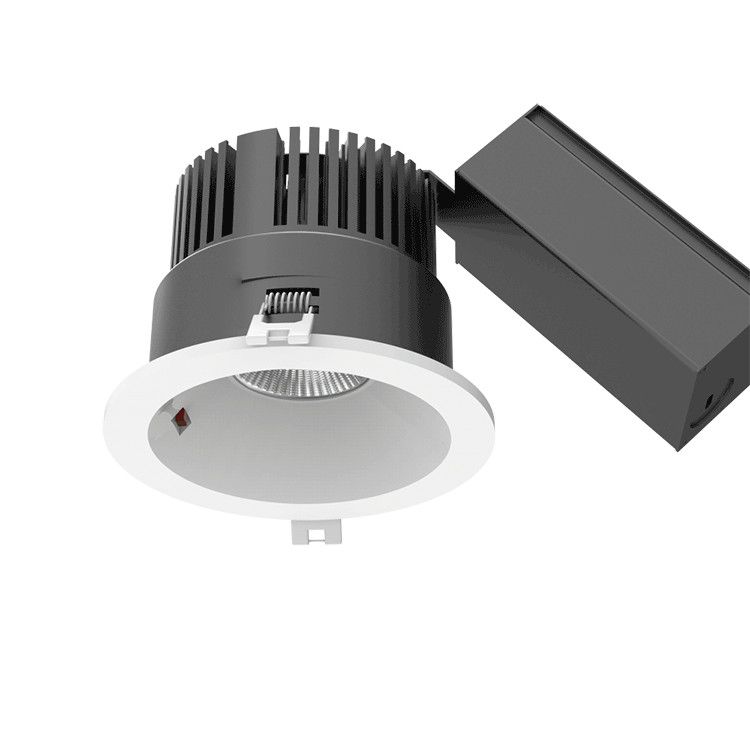

Lighting Project 4″ Remodel Round Commercial Trimmed or Trimless LED Recessed Downlight
ITEM No.： AL4-R-002
Power : 15/20/30W
Voltage : 120/230/277V
Lumen : 1000/1500/2250LM
Power factor : PF>0.98
CRI : 80+CRI/90+CRI
Frequency : 50/60Hz
Dimmable : NONE/TRIAC/RD 0-10V
CCT : 2700/3000/3500K
Lifespan : 50000 H
Certification : ETL
Features

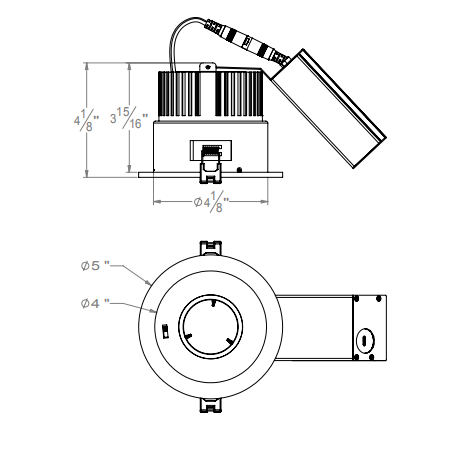

Four sides staddle install, the staddle can be adjusted from 14½ “-24”, to adapt to a variety of joist structures and keel sizes.
Lamp height can be adjusted, accommodate 1/2 “to 1 1/4” ceiling thickness.

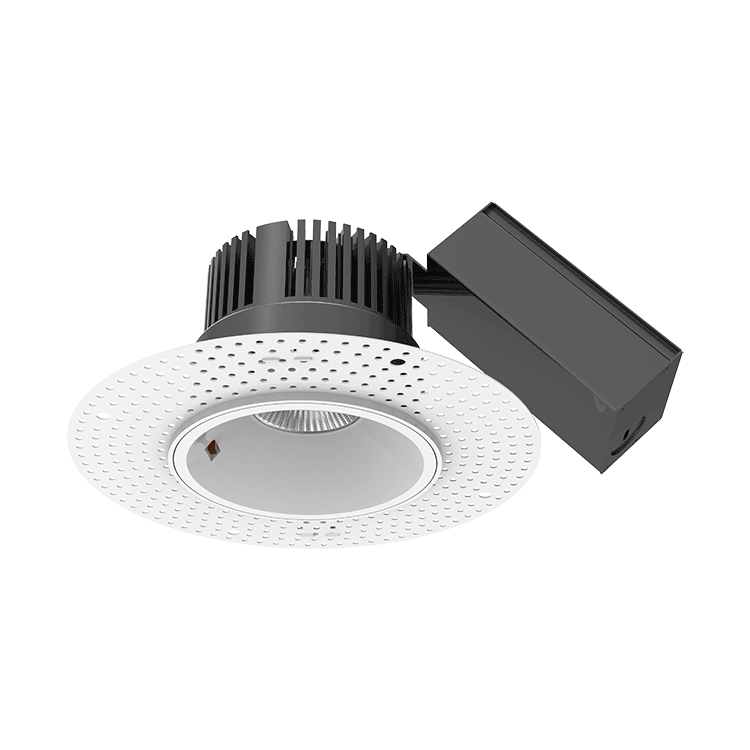

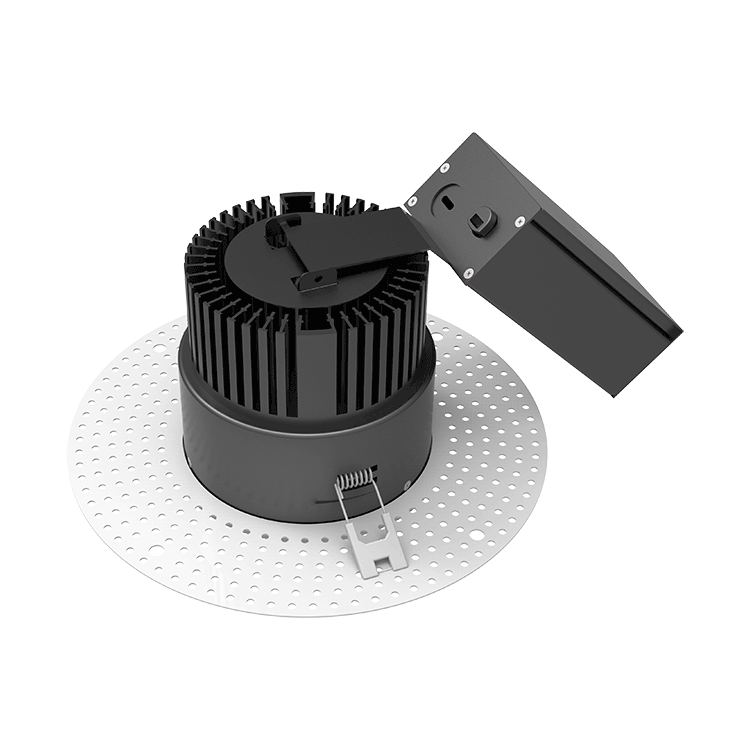

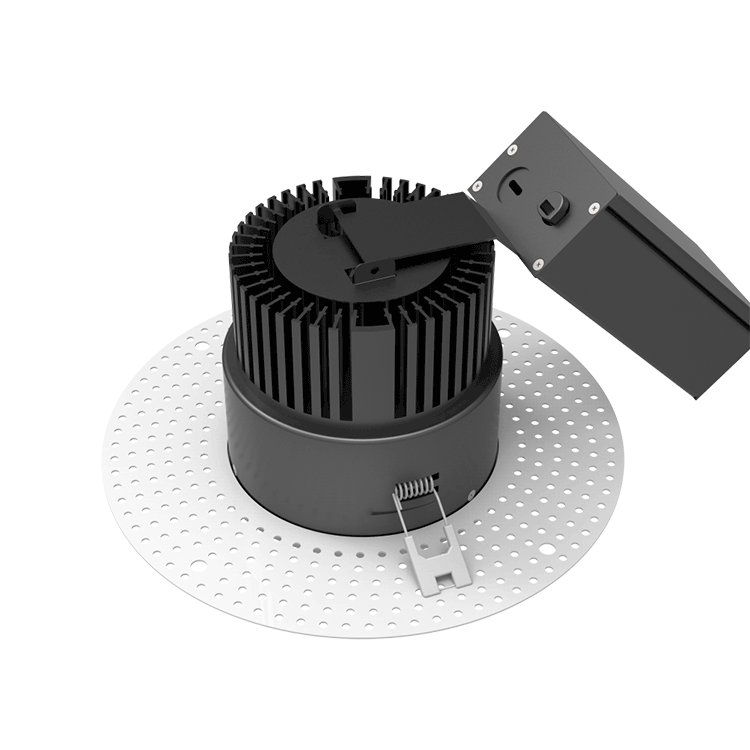

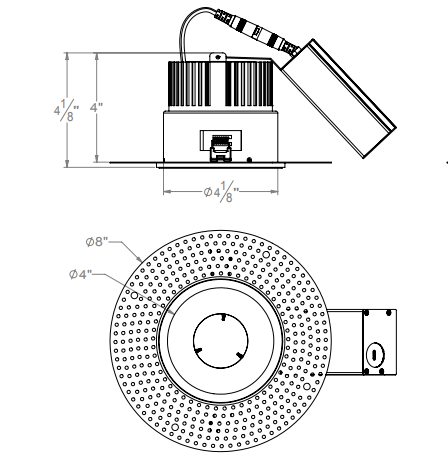

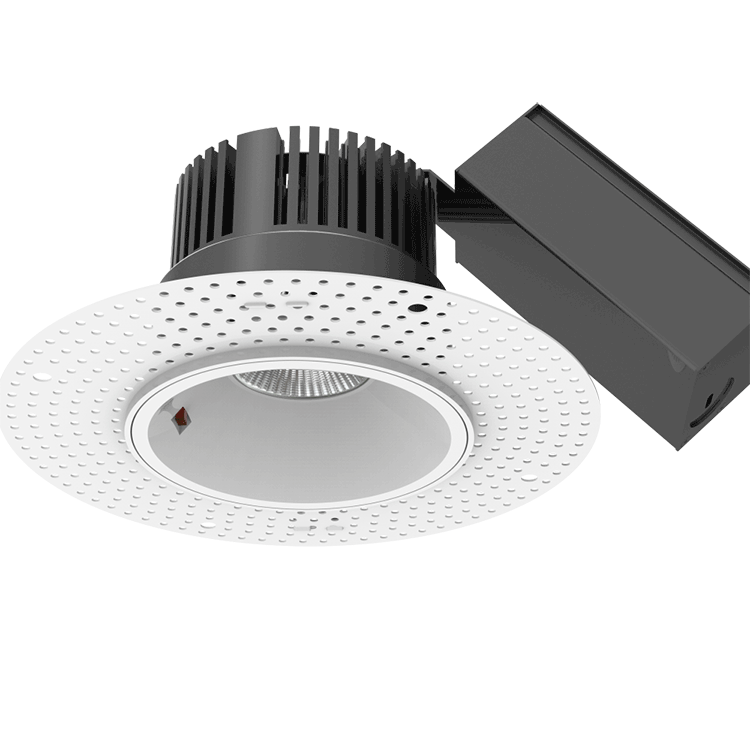

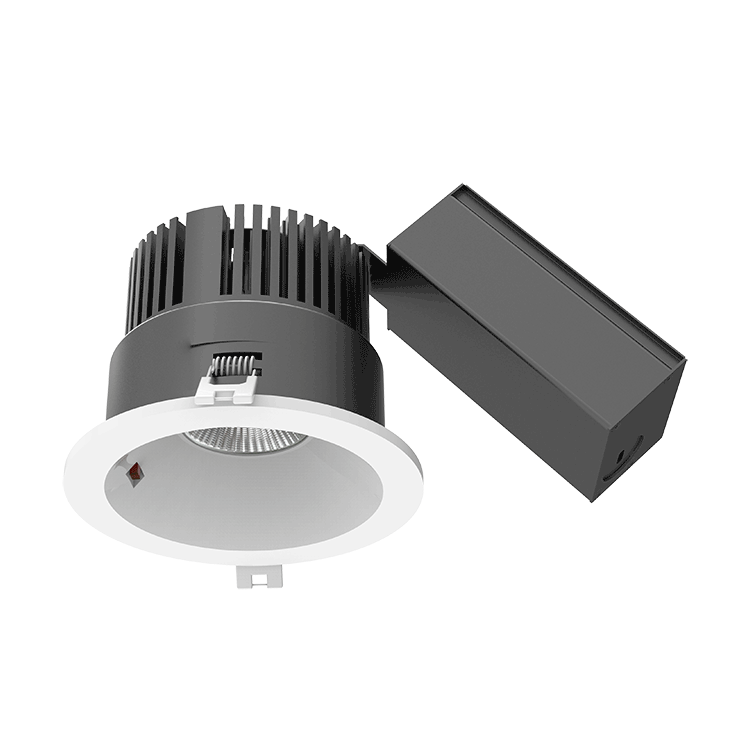

Trimmed and trimless available.
Rotated separated reflector, more convenient for parts replacement.
Isolation driver, high power factor and conversion efficiency, constant current output.
Application: Automotive and Parking, Education, Government, Healthcare, Hospitality, Offices and Banks, Religious, Retail.
Specification
| Power | 15/20/30W |
| Voltage | 120/230/277V |
| Lumen | 1000/1500/2250LM |
| Power factor | PF>0.98 |
| CRI | 80+CRI/90+ |
| Frequency | 50/60Hz |
| Dimmable | NONE/TRIAC/RD 0-10V |
| CCT | 2700/3000/3500K |
| Lifespan | 50000 H |
| Certification | ETL |
Trim
Die-casting aluminum, spray high-reflective powder, high light uniformity.
Light Source
High light transmittance, strong light diffusion performance, no shadow, no glare.
Point light source turned into spherical light emitting.
Milky white light transmission rate reach 90% above.
Excellent concealed light source, achieve the best light transmission rate without seeing the LED lamp bead.
Radiator
Excellent cold forging radiator, good heat dissipation.
Driver
Independent isolation constant current drive, high power factor optional .
Constant current design, high reliability, stable performance.
Wide voltage design, 120V-277V available.
Meets the requirements of safety and electromagnetic compatibility.
