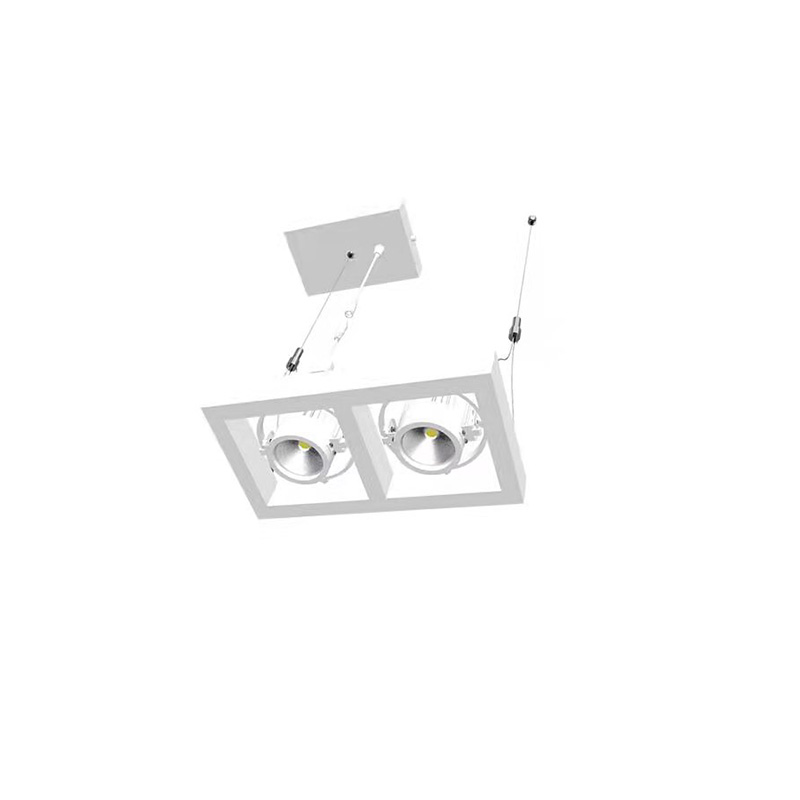

Liteharbor High Efficiency Adjustable LED Pendant Light

ITEM No.： G4012-B-P
Wattage : 25 W*2
Light Source : COB LED
Input volt : 120V-277V
CCT : 4000
Materials：aluminum

WhatsApp Info@liteharbor.com Tel: 8613620811065

Description
Feedback

DESCRIPTION

LED Multiple Pendant Spots for remodeling and new construction applications for residential and commercial environments.The Multiple Spots are marketed as complete units. Single to six head units available,four and six head unit is available in two and three configurations: rectilinear or two-by-two square and three-by-three rectangle . each spot is individually adjustable and provides a 30 degree visual cutoff for glare control and 3CCT Switch.

CONSTRUCTION

High efficiency cold forged aluminum heat sink.

The frame are constructed of 22mm gauge steel square pole.

MOUNTING

Simple pendant installation with stainless steel aircraft cable.

The standard aircraft cable is 40” or custom length.

ELECTRICAL

Driver: Universal (120V – 277V) or 120V input only

Light Source: High output LED (The whole light)

Dimming: 0-10V or ELV (see list of housings below)

OPTICS

12˚ Spot, 24° Narrow Flood, and 36˚ Flood

Up to 30° Vertical Adjustment

Can change the lens color for different applications.

LED LIGHT ENGINE

2700K, 3000K, 4000K, 5000K and 6500K, 80CRI/90CRI Option

Typle A – 3CCT, provides 3000K-4000K-5000K option

Typle B – 3CCT, provides 2700K-3000K-3500K option

LED mounted to high efficiency cold forged aluminum heat sink.

Rated life of 50,000 hours.

LISTING / WARRANTY

cETLus listed for damp location and feed through wiring.

5 Year Limited Warranty.

PERFORMANCE FOCUS

Series	Energy (W)	Light (lm)	Efficacy (lm/W)
G4011-B-P	1*25W	2000	80
G4012-B-P	2*25W	4000	80
G4013-B-P	3*25W	6000	80
G4014-B-P	4*25W	8000	80
G4014-B-P-S	4*25W	8000	80
G4015-B-P	5*25W	10000	80
G4016-B-P	6*25W	12000	80
G4016-B-P-R	6*25W	12000	80
