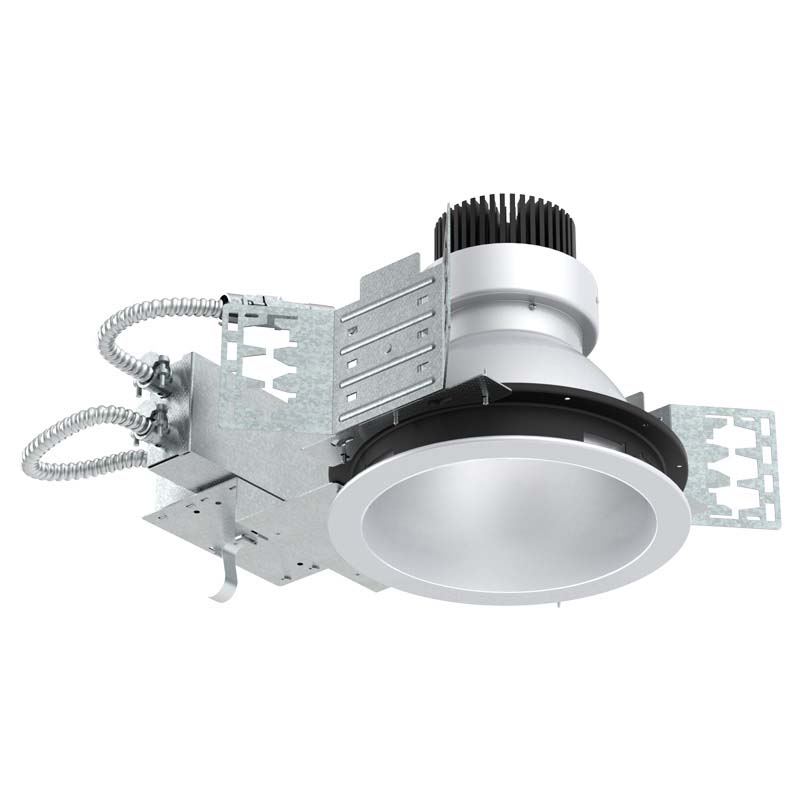

Store Lighting 8” Architectural LED Downlight
/
/
/
/
Store Lighting 8” Architectural LED Downlight

Description

Lighting is smooth and comfortable while using 50% less energy than the common 26W & 32W CFL downlight.

Eco-friendly no lead or mercury

Designed to install into an existing downlights mounting frame and convert them into energy efficient led downlights to save anywhere from 35% up to 75% on energy cost.

Idea suited for use in commercial, retail and other architectural applications

Available with dedicated Emergency Battery Back-up



Reflector

High quality reflector with 1.2mm thickness available finishes and types in multiple architectural finishes and types.

Optional painted white flange is available



Reflector Assembly

Reflector easily wires to dedicated frame with locking quick connect



LED Module

Cree true white® technology available

CRI>80%

Color temperature 3000K-5000K

Rated for 50000 hours at 70% lumen output

No heat, mercury or UV



Electrical System

Thermal protection guard protects the LED module from overheating and will dim LED module if necessary

PF>9.50/60Hz

Fully dimmable down to 10% of initial light output with a 0-10 Volt dimmer.



Wattage

32W Max.



Color Temperature

3000K – 5000K



Lumen

2200-2600LM



Frame

Constructed from 16-gauge steel, die-formed construction for max heat dissipation and rust protection.



Clearance

Frames require a minimum clearance of 3” ring from thermal insulation and 1/2” from adjacent building component.



Mounting

Designed to install into an existing downlights mounting frame and convert them into energy efficient led downlights.

Flex is designed to attach into existing junction box.

Vertically adjustable universal mounting brackets accept flat bar hangers, conduit or C channel.

The reflector assembly is held in with 4 “butter-fly” spring clips.

Reflector assy quickly attaches with lockable quick connect. Hanger bars ordered separately.

Compatible with C-channel, flat bar wood joist bar hanger and EMT



Junction Box

Plaster frame integrated 29 cubic inch 0.064″ thick galvanized steel

Provided with four ½” knockouts, one ¾” knockout and four Romex knockouts with true pryout slots and strain clamps. Designed for straight through conduit runs.

Electrical connections are made through a single junction box door.

Green wire provided for installation with ground wire fed through PVC pipe conduit.



Thermal Protector

External thermal device is located on the junction box wrap.



Driver

The LED driver is mounted to the J-box cover and is accessible from below the ceiling.

Rated for 50 to 60Hz at 120V/277V input

Produces less than 20% THD



Listing & Warranty

ETL listed to US and Canada standards for wet locations

5-year limited warranty
