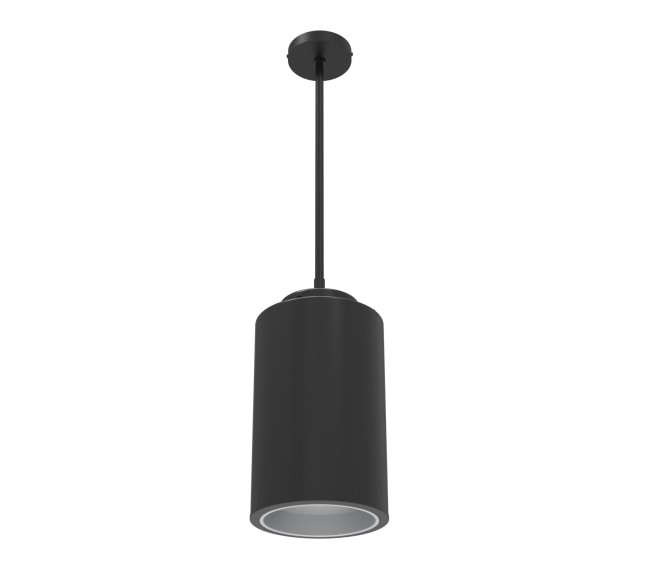

Office Lighting 8 Inch Liteharbor Cylinder LED Pendant Downlight
ITEM No.： AL8-VA-FM
Series : LED Pendant Downlight
Wattage : 17W/21W/26W
Light Source : LED
CCT : 2700-4000K
Shape : Cylinders
Description
The precision designed using advanced proprietary LED technology with a built-in re flector. An appealing cylindrical pro file with powerful LED lighting is perfect for commericial and residential applications.
Features
₋ 8 inch spring hanging fixed, suitable for all six inch housing installation.
₋ The power supply uses a non-isolated high voltage solution, high power factor.
₋ Supports thyristor dimming.
₋ Good light effect, the spot is clear and beautiful.
Specifications
Light Source: LED
Input Voltage: AC 120V 230V 277V 50/60Hz ( 90-305V is optional)
Wattage: 17W/21W/26W
CCT: 2700-4000K
Lumen: 1800/2200/2700LM
Luminous Efficiency: 90LM/W
Material: Die cast aluminum
PF: >0.98
CRI: 80+/90+
Shape: Cylinders
Mounting
Pendant mount.
Dimming
TRIAC, None/RD 0-10V
LISTING / WARRANTY
ETL listed to US and Canadian standards for damp location
W/Feed through.
5 Year Limited Warranty.
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
AL8-VA-FM
|
liteharbor | 242 KB | 409 |
