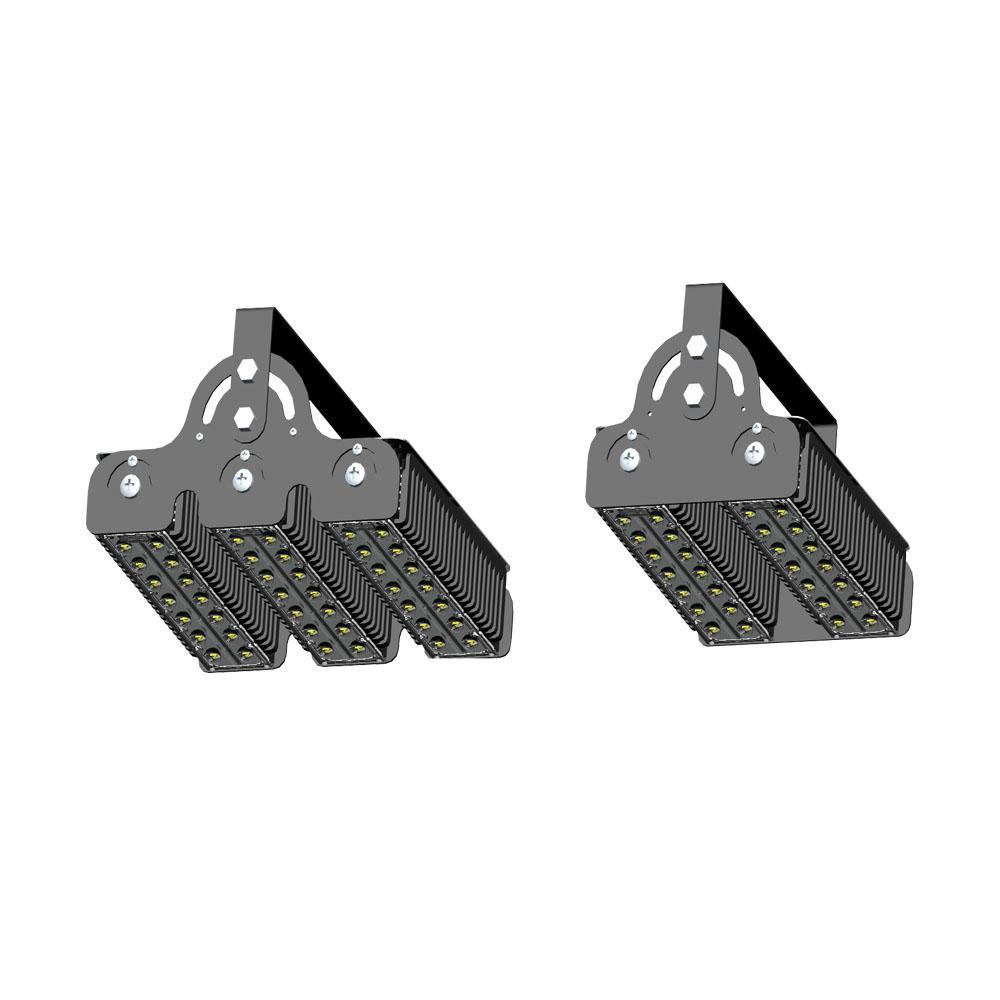

90W LED Tunnel Light
ITEM No.： DG5401
Series : LED Tunnle Light
Input voltage : AC90-305V
Wattage : 90W
Power Factor : >0.95
Working Temperature : -30 –50°C
FEATURES
The smooth linear and the LED structure characteristic organic combination,Appearance simplicity
and comfortable,The concept design of the humanized structure of the lamp.
To maintain good heat dissipation effect, to ensure the life of LED.
the whole lamp protection level is good, reaching IP65.
Unique two light distribution design, the lost light curve is a bat wing, the standard rectangular light spot,
to ensure that the light distance in the 40M can achieve good uniformity.
Long life power supply to ensure that the service life of 50000 hours or more, with the short circuit protection
open circuit protection, thermal protection and other multiple protection functions,to achieve
synchronization with the LED lamp life
Description
Specifically designed for road lighting needs
To optimize the design of a new type of environmental
protection and energy saving products which meet
the special requirements of the road.
This product uses CREE high power LED light source.
Details
Power Factor: >0.95
Working Temperature: -30 –50°C
Input Voltage: AC90-305V
IP Rating: IP65
Class: CIASS I
Mounting: Cantilever mounting
CRI >75
LED LIGHT ENGINE
90W LED
2850 to 5300K
>50,000 hours
DIMENSIONS
L=250mm
Application
Suitable for Park,Square,Residential quarters,
Scenic spot and Green Belt etc.
