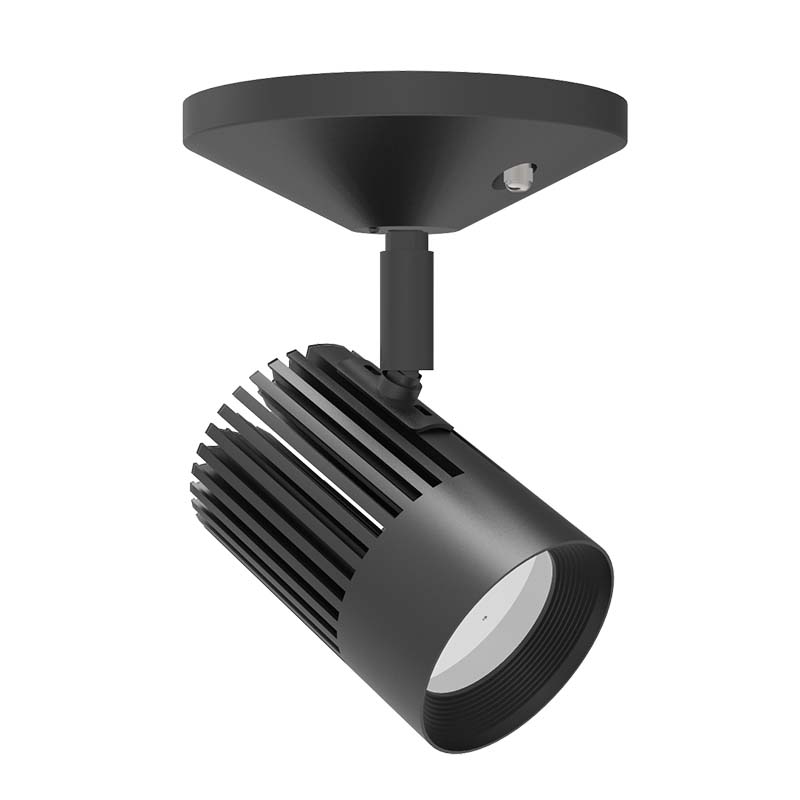

Ceiling/Wall Mount COB 3CCT LED Track Light FM3023M Gallery Lighting

LED COB track light WITH CANOPY

LED Light Engine

• Color Temperature 2700K-6000K
• CRI 80+
• 3 Step MacAdam (3 SDMC)
• Passive aluminum heat sink
• 3 color temperature selectable, convenient inventory and cost savings
• 50,000 hrs average rated life



Electrical System

• 120V/277V 50/60Hz input
• Over voltage, over current and short circuit protection: Auto recovery
• MTBF > 100,000 hours



Optics

16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood



Dimming

• Track Dimming

• (ELV) reverse phase control dimmers. 120V only.
• Dimmable 100 – 10%



• Canopy Dimming

• ELV Dimming 120V
• 0-10V Dimming 120V or 277V

HIGH VOLT COB CHIP(WITHOUT DRIVER)

This simplifying the design of LED lamp save the shipping costs while expanding the scope of application of a luminaire.

The main advantages 120V/277V high volt COB chips are more reliable, have stable performance, longer service life and better resistance to extreme temperatures.

Compatibility

Track luminaire is designed for use with the following track systems:

• Single Circuit/Single Neutral 120V
• Two Circuit/Single Neutral 120V (No Dimming)
• Two Circuit / Two Neutral 120V
• Two Circuit / Two Neutral 277V

Material	Die cast aluminum
Input Voltage	120/277vV
Wattage	20W/25W/30W/35W/40W/45W
CCT	2700,3000K,3500K,4000K,5000K,6000K，3CCT
PF	>0.98
CRI	80+/90+
Mounting	Canopy  Mount

Mounting

Mounts to a standard 4” square or octagon junction box



Listing & Warranty

ETL Listed to US and Canadian standards for dry locations

5 Years Limited Warranty
