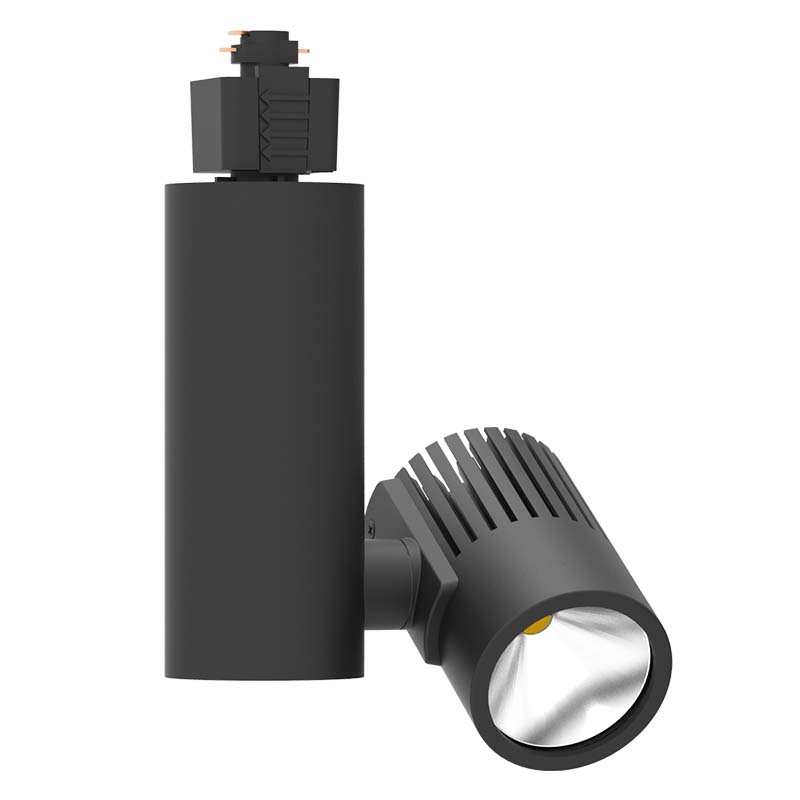

20W J/H/L Type Track System 3CCT COB LED Track Light K3023S Gallery Light
ITEM No.： K3023S
Series : LED Track Light
Light Source : COB LED
Input volt : 120V-277V
Wattage : 20W Max
Lumen : 100lm/W
LED Light Engine
• Color Temperature 2700K-6000K
• CRI 80+
• 3 Step MacAdam (3 SDMC)
• Passive aluminum heat sink
•Multiple connectors can share a lamp body
• 3 color temperature selectable, convenient inventory and cost savings
• 50,000 hrs average rated life
Electrical System
• 120V/277V 50/60Hz input
• Over voltage, over current and short circuit protection: Auto recovery
• MTBF > 100,000 hours
Optics
16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood
Dimming
Track Dimming
• (ELV) reverse phase control dimmers. 120V only.
• Dimmable 100 – 10%
Canopy Dimming
• ELV Dimming 120V
• 0-10V Dimming 120V or 277V
| Material | Die cast aluminum |
| Input Voltage | 120V/277V |
| Wattage | 8W/10W/12W/15W/20W |
| CCT | 2700,3000K,3500K,4000K,5000K,6000K，3CCT |
| PF | >0.98 |
| CRI | 80+/90+ |
| Mounting | Track Mount |
Compatibility
Track luminaire is designed for use with the following track systems:
• Single Circuit/Single Neutral 120V
• Two Circuit/Single Neutral 120V (No Dimming)
• Two Circuit / Two Neutral 120V
• Two Circuit / Two Neutral 277V
Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty
