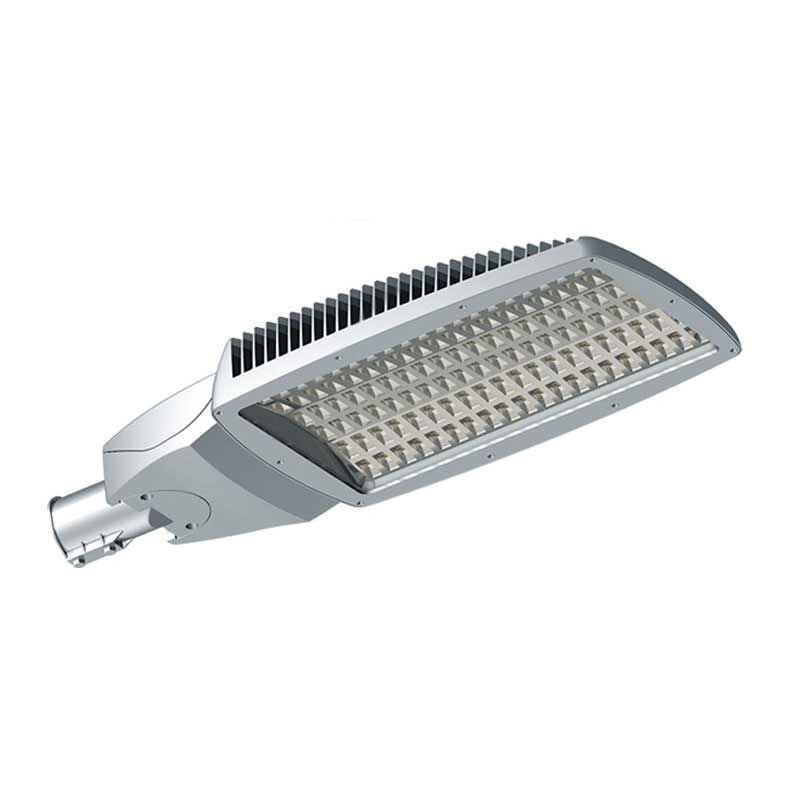

Commercial Led Street Light
ITEM No.: Y0801
Product Series : led street light
Chip : Cree Led
Material : Aluminum
wattage : 180
ODM & OEM : acceptable
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
Description
Y0801 is a new energy saving and environment protection luminaire designed from considering food lighting requirements and avoiding traditional lighting defects to protect a uniformity.
High efficiency lighting output and good uniformity.
Y0801 has many special charocters including used high power CERR leds, heat super-conduct material designed and intelligent power control and so on. Which make Y0801 show very excellent performance in road lighting and it mainly designed for low power consuming which will be the best choose for your path, garden etc.
Lighting Effect
Product Features
1) Streamline configuration combining with LED fittings perfectly
2) Asthentic outlook of the light is also special landscape for the city light
3) The streamline configuration can also help to shed deposit effectively and maintain a safe temperature which guarantees low level high depreciation and longer life span.
4) Pressure die-cast aluminum alloy (ADC12) housing guarantees IP65 with high intensity.
5) Bat-wing photometric system accurately delivers rectangle light spot and insures uniform luminance with 40m interval.
6) The heat produced by the luminaire when working is effectively taken away by natural wind flow
7) Independent gear box has an upper cover simply and firmly locked by a rolling bar for easy installation and maintenance.
8) PC electroplated reflector with 95% efficiency
9) Horizontal or longitudinal arm installation
10) Original CREE leds with high lumen efficiency.
11) High light transmittance and constant color from superior temper glass diffuser.
12) c diver with short protection, open-circuit. Those fans are even designed to be along vehicles driving direction so that wind flow produced by vehicles can takes away the heat effectively and maintains a temperature raising under 23K.
Special gear box
Special gear box an upper cover simply and firmly locked by a rolling bar easy installation and maintenance.
Light distribution curve
LEDS
Input Voltage:AC85-265V
Frequency:47-63Hz
PF>95%
THD<15%
CREE
Luminous Efficiency>95lm/w
Luminaire Efficiency>80%
Working Temperature:-30℃-50℃
Life time>50000h
Wattage | Initial Luminous Flux | Constant Luminous Flux | System Consumption |
100*1.5 | 14250lm | 12525lm | 170W |
120*1.5 | 17100lm | 16390lm | 203W |
40*2 | 6400lm | 5760lm | 90W |
60*2 | 9600lm | 8640lm | 136W |
80*2 | 12800lm | 11520lm | 181W |
90*2 | 14400lm | 12960lm | 203W |
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | Y0801 spec sheet | liteharbor | 148 KB | 249 |
