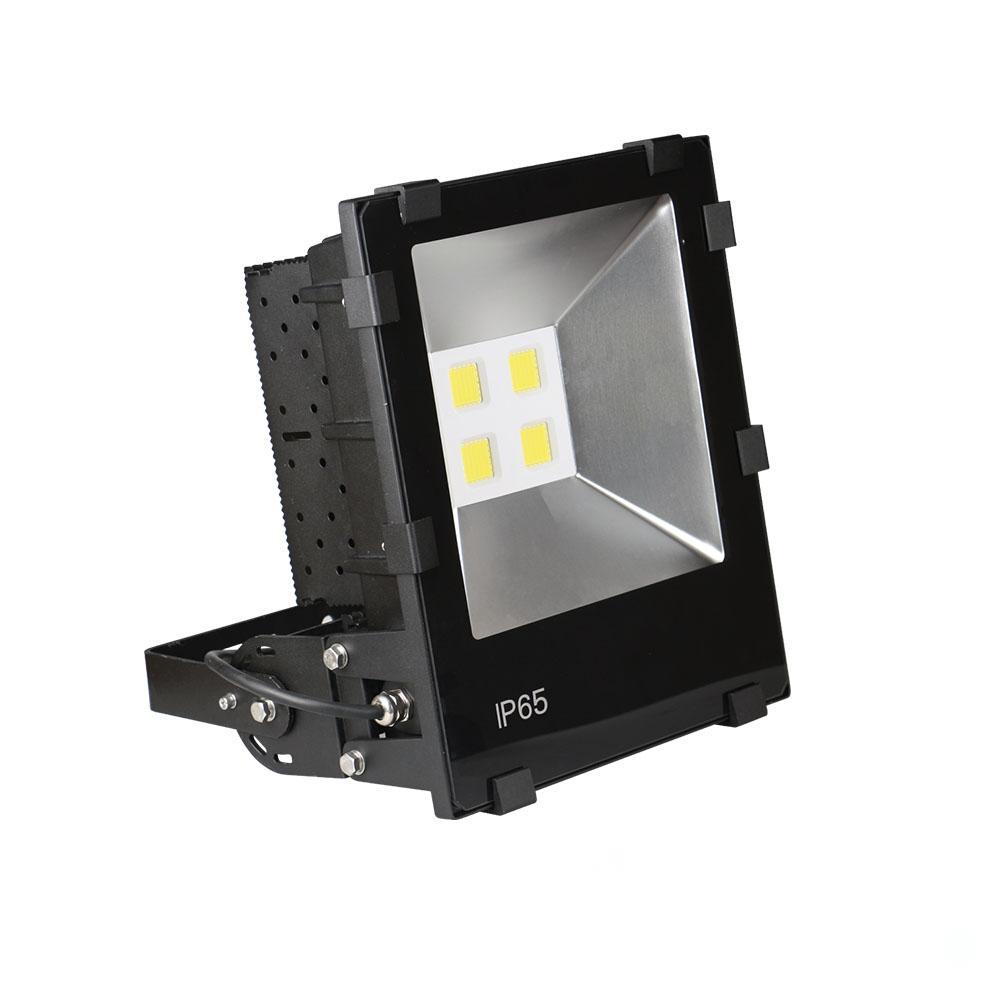

Die Casting Aluminum Scale-Type Heat Sink LED Flood Light 200W
ITEM No.: FL-007-200
Wattage : 200W
Material : Die Casting Aluminum
IP Rating : IP65
Listing : ETL, CE, ROSH
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
Specification
Adopt the zero distance aerodynamic cooling module system made of screw-free type die-casting molding flake aviation aluminum alloy material.
Used the top super bright LED chips imported with original packaging from U.S..
With the advantage of free maintenance, ultra low temperature rise, low light decay, easy disassembly.
It’s the top super performance product in the LED industry currently.
Data
Item No.: FL-007-200
Material: High Strength Aluminum Alloy
Power: 200W
IP Rating: IP65
Lumen: 22000LM
Temperature Rise: <60°C
Lifespan of Chip: >50000 Hrs
Light Distribution Mode: LED+ Condensing Lens Group + Toughened Glass
Lifespan of Lamp: >4~5 Years
Beam Angle: 120°
Input: AC85~265V / 50~60Hz
LED Q’ty: 4PCS
Power Factor: >95% / >65%
Emitting Color: Pure White, Warm White, Cool White
Listing: ETL, CE, ROSH
LED Driver: Built-in waterproof 120-277V power supply
Technical Highlights
1. The heat conduction system takes the solution used of flake die casting aluminum, which is the current LED industry’s top effective heat conduction material.
2. The cooling module uses the aviation aluminum alloy precision casting and become, equipped with 25 pieces of 392x318mm zero distance high heat Aluminum Alloy scales, integrally formed by aerodynamic layer iterative, and uses a spring type screw free disassembly scheme, the whole lamp protection grade reaches IP65, the whole light weight 7.7KG, temperature control at 45~55 DEG C, belongs to the industry’s top ultra-low temperature rise, belongs to the most top 200w in the end the cooling module configuration.
3. The LED chip using high coefficient of thermal conductivity of pure copper stent and the tension is three 99% pure gold silver plated line double clean anti-static packaging.
4. LED chip under normal and stable operation, the integral sphere measured 140~150lm/w, the brightness performance takes the first place in the global LED industry.
5. The LED driver using constant current constant wide voltage AC85 ~ 265 v national energy conservation certification scheme, and USES the pure high thermal conductivity to IP67 is three potting sealant, drive electro-optic conversion efficiency and performance in the end of the LED driver first.
