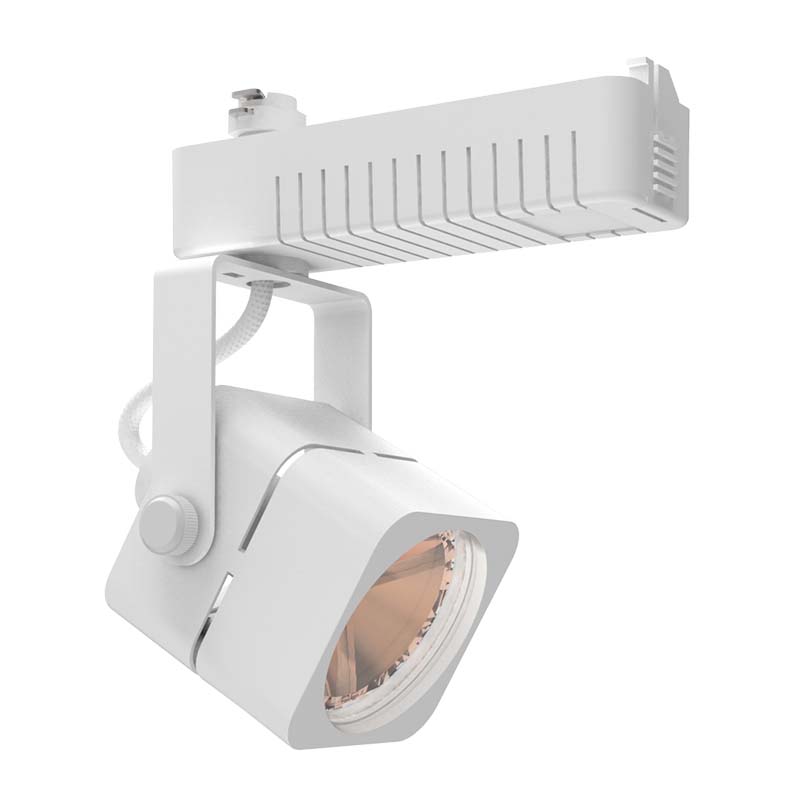

LED Track Lighting Canada America Standards
ITEM No.: K1103
Input voltage: 12V
Lamp: LED MR16 8W max.
Material: Die cast aluminum
Finish: Black/ White/ Silver or customized
Wires: 2/ 3/ 4 wires track
Shape: Square
Description
Low voltage die cast aluminum designer gimbal fixtures with MR16 light source. Yoke provides full adjustment position of light source for special aiming and dual tightening knobs assure secure lock on angle position.
Features
Die cast aluminum provides superior strength and rigidity.
Low profile, aesthetic design.
Adjustable yoke for custom aiming.
One or two circuit track capable.
Housing
Iron / die cast aluminum construction; gimbal appearance and design features. All edges are softened for aesthetic appearance.
Yoke
Iron yoke connects fixture housing to electrical contact head. Dual plastic angle tightening knobs maintain clean, decorative appearance of the fixture and provide secure angle position.
Socket
GU5.3 MR16
Lamp
LED MR16 8W max.
Transformer
Solid state electronic transformer provides noise-free voltage reduction and operation. If dimming, use electronic low voltage rated only dimming controls. Integral Unit: 120V/60Hz Input; 12V Output; 50VA Max. load
Finishes
Black, White and Satin Nickel heat rated baked enamel paint.
Custom painting or anodizing for special applications is also available. Custom finishes will require lead times that vary depending on vendor schedule. Please consult factory for quotation.
Wiring
Teflon coated wire lead connects socket and housing to electrical contact head. Teflon coating is durable and resists heat degradation from lamp and housing radiation.
Listing
c-ETL-us Listed
Warranty
Two Year Limited Warranty.
