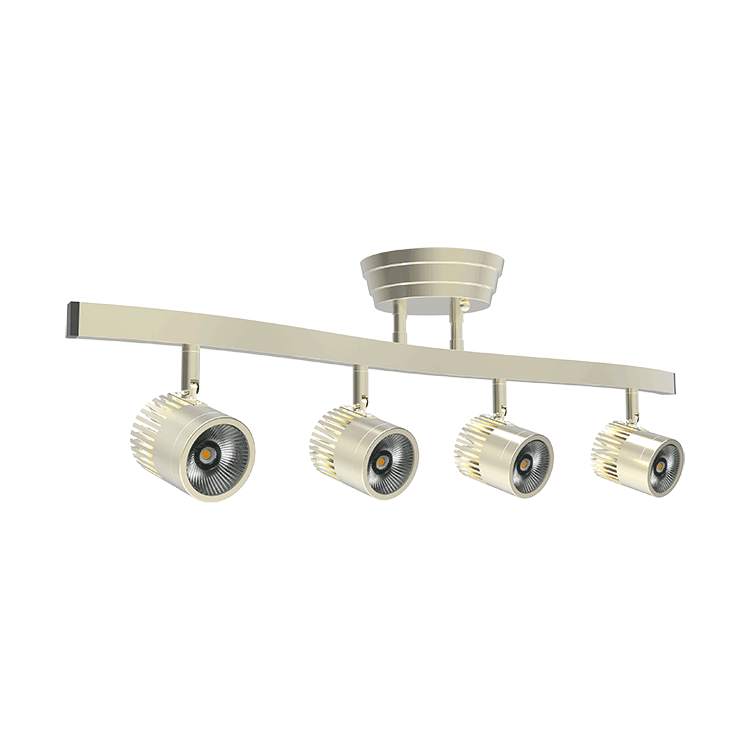

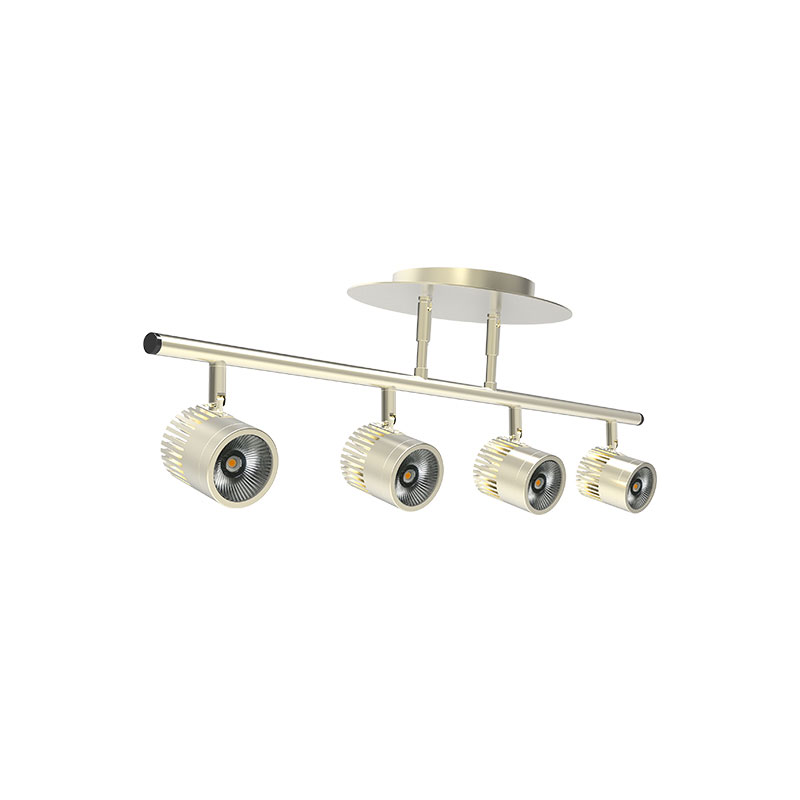

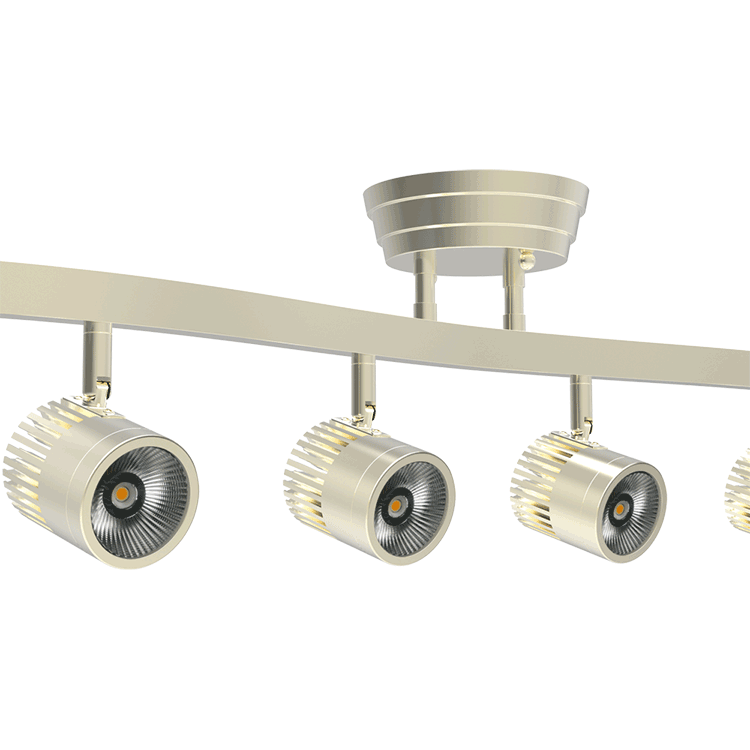

Line Volt. Die-casting LED COB Track Light 4 Head

LED COB track light WITH CANOPY

LED Light Engine

• Color Temperature 2700K-6000K
• CRI 80+
• 3 Step MacAdam (3 SDMC)
• Passive aluminum heat sink
• 50,000 hrs average rated life

Electrical System

• 120V/277V 50/60Hz input
• Over voltage, over current and short circuit protection: Auto recovery
• MTBF > 100,000 hours

K3023-4C

Ceiling mounted single head

30 Watt/Lamp

2550 Lumen/Lamp

Optics

16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood

Dimming

Track Dimming

• (ELV) reverse phase control dimmers. 120V only.
• Dimmable 100 – 10%

Canopy Dimming

• ELV Dimming 120V
• 0-10V Dimming 120V or 277V

Compatibility

Track luminaire is designed for use with the following track systems:

• Single Circuit/Single Neutral 120V
• Two Circuit/Single Neutral 120V (No Dimming)
• Two Circuit / Two Neutral 120V
• Two Circuit / Two Neutral 277V

Mounting

Mounts to a standard 4” square or octagon junction box

Listing & Warranty

ETL Listed to US and Canadian standards for dry locations

5 Years Limited Warranty

Product File Download

#	File	Added by	File size	Downloads
1	K3033-4C	liteharbor	659 KB	231
