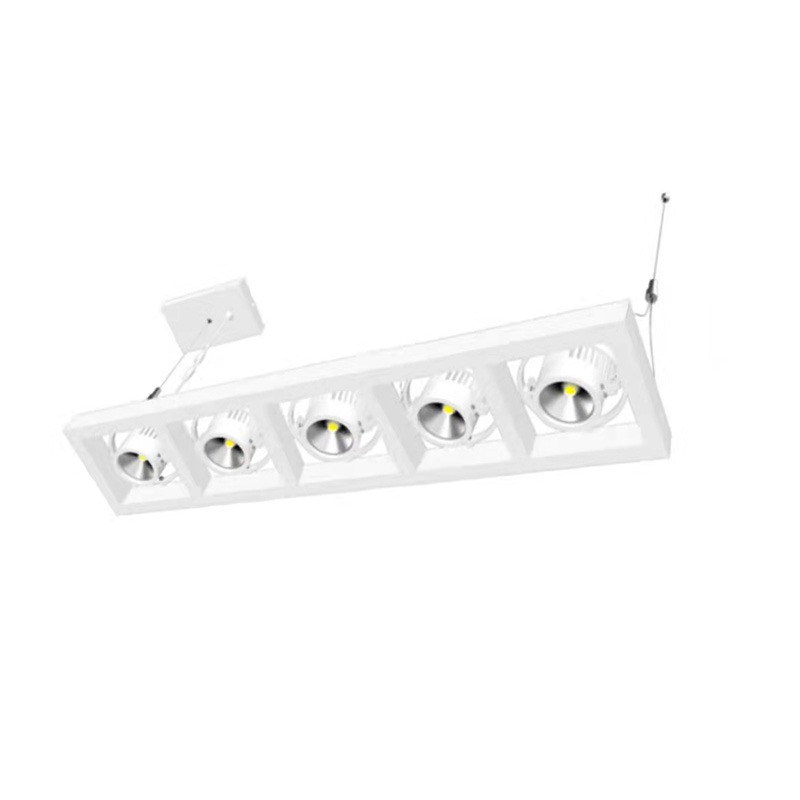

Liteharbor Kitchen LED Pendant Light Multiple Spot Light
ITEM No.： G4015-B-P
Wattage : 25 W*5
Light Source : COB LED
Input volt : 120V-277V
CCT : 10000
Materials：aluminum
DESCRIPTION
LED Multiple Pendant Spots for remodeling and new construction applications for residential and commercial environments.The Multiple Spots are marketed as complete units. Single to six head units available,four and six head unit is available in two and three configurations: rectilinear or two-by-two square and three-by-three rectangle . each spot is individually adjustable and provides a 30 degree visual cutoff for glare control and 3CCT Switch.
CONSTRUCTION
High efficiency cold forged aluminum heat sink.
The frame are constructed of 22mm gauge steel square pole.
MOUNTING
Simple pendant installation with stainless steel aircraft cable.
The standard aircraft cable is 40” or custom length.
ELECTRICAL
Driver: Universal (120V – 277V) or 120V input only
Light Source: High output LED (The whole light)
Dimming: 0-10V or ELV (see list of housings below)
OPTICS
12˚ Spot, 24° Narrow Flood, and 36˚ Flood
Up to 30° Vertical Adjustment
Can change the lens color for different applications.
LED LIGHT ENGINE
2700K, 3000K, 4000K, 5000K and 6500K, 80CRI/90CRI Option
Typle A – 3CCT, provides 3000K-4000K-5000K option
Typle B – 3CCT, provides 2700K-3000K-3500K option
LED mounted to high efficiency cold forged aluminum heat sink.
Rated life of 50,000 hours.
LISTING / WARRANTY
cETLus listed for damp location and feed through wiring.
5 Year Limited Warranty.
PERFORMANCE FOCUS
| Series | Energy (W) | Light (lm) | Efficacy (lm/W) | ||||||||||
| G4011-B-P | 1*25W | 2000 | 80 | ||||||||||
| G4012-B-P | 2*25W | 4000 | 80 | ||||||||||
| G4013-B-P | 3*25W | 6000 | 80 | ||||||||||
| G4014-B-P | 4*25W | 8000 | 80 | ||||||||||
| G4014-B-P-S | 4*25W | 8000 | 80 | ||||||||||
| G4015-B-P | 5*25W | 10000 | 80 | ||||||||||
| G4016-B-P | 6*25W | 12000 | 80 | ||||||||||
| G4016-B-P-R | 6*25W | 12000 | 80 | ||||||||||
