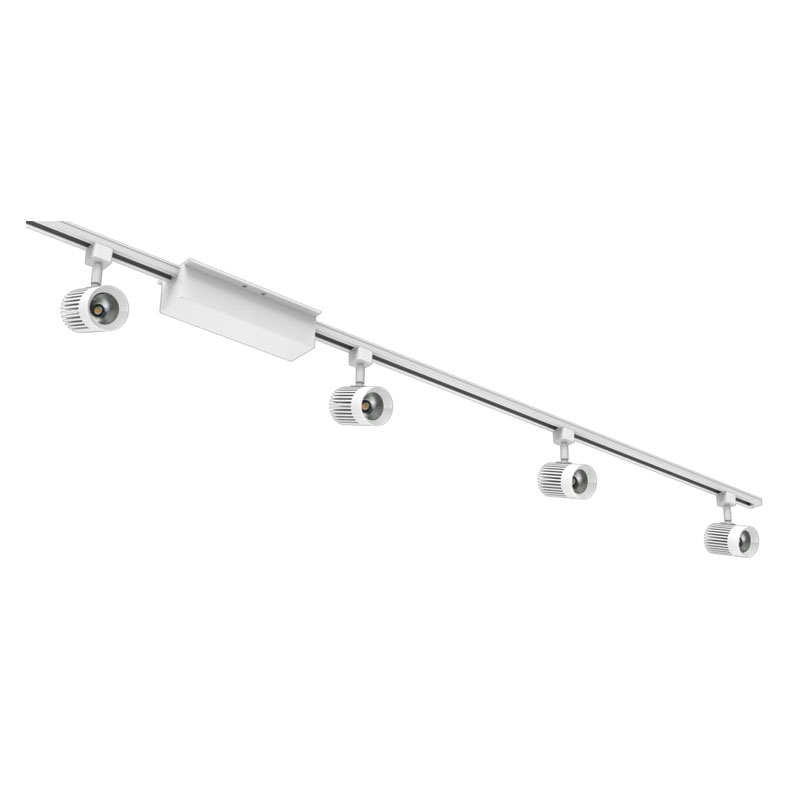

Liteharbor Line-voltage Centralized Power Supply LED Track Light Clothing Store Spotlight
ITEM No.: K3023-4C
Series : LED Track Light
Lamp : 15W/lamp
Input Voltage : AC120V 50/60Hz
CCT : 2700/3000/4000/5000/6000K
Working Lifetime : 50000Hrs
Finish : Black/ White/ Silver or customized
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
Features
– Centrally powered driver 120V input to 42V low pressure output to track bar, then through a buck pcb at the light source
becomes the output 36V power lamp beads. Low-voltage centralized power supply improves safety and reduces single lamp
spare parts.
– The structure of the track lights is compact and the appearance is simple and generous.
– 15W per lamp, up to 9 lamp heads can be installed (8 foot track bar, others can be customized as required).
– The lighting has a wide range of adjustments, the horizontal adjustability is as high as 358º, and the vertical tunability is up
to 90 degrees. It provides good light output, high efficiency and energy saving, and can be suitable for various lighting places.
– Long life, low electromagnetic interference, low energy consumption, high performance and provides short circuit and over current protection.
– Dimming: Non-Dimming/TRIAC Dimming, compatible with a variety of silicon controlled dimming, dimming depth 5% without flicker.
Applications
Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail.
Specifications
Radiator: Using cold forging radiator, fast heat dissipation, he patented structure of the heat dissipation module, integrated
balanced conduction convection, radiation heat, to ensure long product life.
Lens: Professional optical grade PMMA lens, a variety of beam angles (narrow 10°, medium 20°, wide 30°) are available, and other beam angles are available.
Spraying: Environmental protection electrostatic powder coating surface treatment process, durable wear.
Parameter List
Watt: 15W/lamp
Voltage: AC 120V
Frequency: 50/60 Hz
PF: >0.9
Dimming: Non-Dimming/TRIAC Dimming
CRI: 80+/90+
CCT: 2700/3000/4000/5000/6000K
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
5 Year Limited Warranty.
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | K3023M-1805 | liteharbor | 145 KB | 266 |
