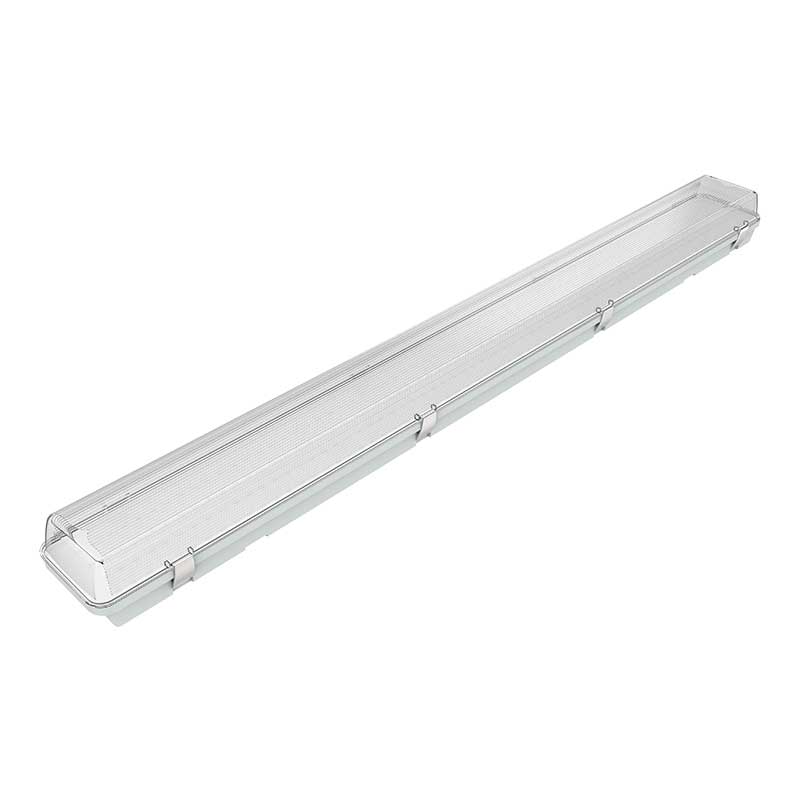

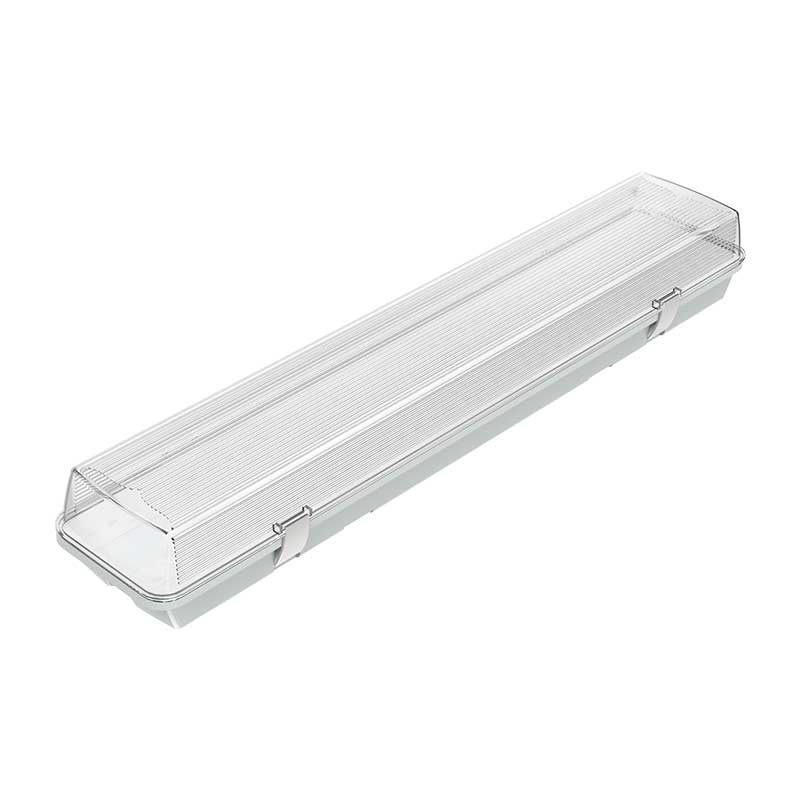

4FT Liteharbor Suspended/Surface Mounted LED Tri-proof Light Parking Light
ITEM No.: PLED-2STR/PLED-4STR/PLED-5STR
Power : 40W/50W
Voltage : 120V ~ 277V AC
CRI : 80+/90+
Dimmable : NONE/0-10V
Certification : ETL listed
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
Features
-PLED-2STR/PLED-4STR/PLED-5STR is a dustproof, moisture-proof and anti-corrosion product, provide high lumen, thin, beautiful appearance, safe andreliable, convenient installation and easy maintenance tri-proof light.
– This 4 ft. LED ready vapor tight fixture features a reinforced plastic housing and high translucent cover, milky white cover, transparent cover and striped transparent cover are optionals and it can protect the light from bad weather conditions.
– This product is an industrial grade luminaire which is ideal for retail, commercial and industrial applications.
– IP rating: IP65
– Standard dimming control: 0 ~ 10 v dimming.
– Beam angle: 120 degree.
– Emergency system is available.
– Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location.
– Warranty: 5-year limited warranty on LED and Driver.
Light Source
Using the energy-saving highlighting 5630 SMD LED light source.
Distributed LED array in a variety of lumen output packages.
LED color temperature is available in 3000K/4000K/5000K/6000K. Module is replaceable.
Mounting
The LED Tri-proof light may be surface mounted or suspended, individually or incontinuous row.
Driver
Using isolation constant-current driver power, is the guarantee of security, stability and no flicking.
Applications
Suitable for the garage, warehouse, basement and car parks and other places to provide general illumination.
Specification
Length | 2FT/4FT/5FT |
Power | 40W/50W |
Voltage | 120V ~ 277V AC |
Frequency | 50/60Hz |
Beam Angle | 120 degree |
CRI | 80+/90+ |
Dimmable | NONE/0-10V |
Power Factor | >0.98 |
CCT | 3000K/4000K/5000K/6000K |
Certification | ETL listed |
Lifespan | 50000 H |
Packaging
Inner Box: 1165*125*115 mm 1 pcs/CTN
Carton: 118*39*25.5 cm 6 pcs/CTN
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | PLED-4STR | liteharbor | 203 KB | 233 |
