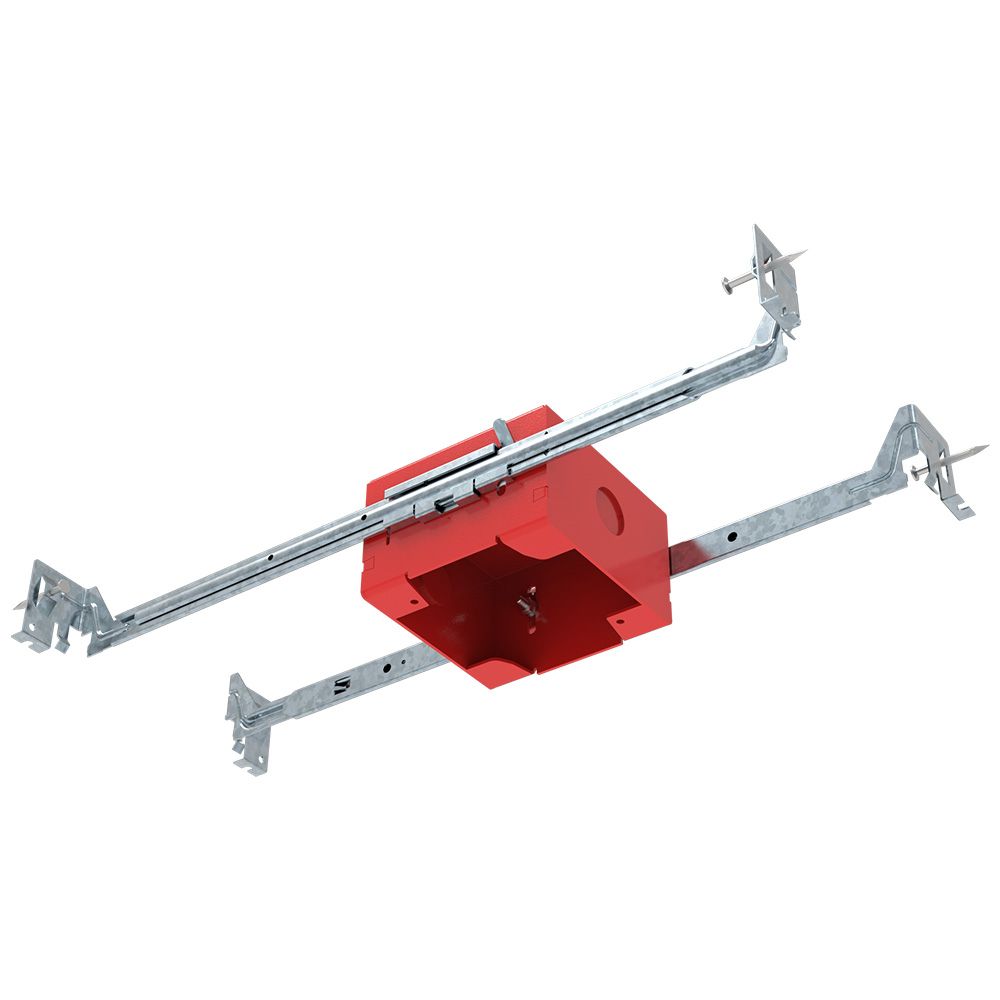

SQUARE FIRE RATED JUNCTION BOX With UL Certificated
ITEM No.:FJ-BOX-S
Input : 120V
Size : 4 inch
Socket :LED quick connector
Light Source : LED Lamp
Listing :UL listed
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
Feature
₋2 Hour Fire Resistance to meet and exceed strict fire safety codes.
₋Rated for direct contact with IC insulation.
₋ETL Certificates ASTM E283 certified Air Tight.
Applications
Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail.
Especially in areas with limited ventilation, such as closets and utility rooms.
Housing:
Unit:mmDie formed #16 gauge galvanized steelconstruction,
Up to 120 minutes fire rated L500 (floor-ceiling) & P500 (roof-ceiling) design.
Hanger Bars:
Pre-installed #21 gauge adjustable bar hangers (14”-24”) for wood joist or t-bar ceiling installations.
Installation:
Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber,and Laminated Beams.
Integral T-bar slots for easy installation in T-Bars. Spans up 24″ and can be repositioned 90°.
Score lines allow for tool-free hanger bar size reduction.
Integral leveling flange allows forsingle-person installation while easily aligning the housings with the joists.
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
IC rated, Airtight ASTM-E283 Certified, UL 263 certificated up to 2 hour fire rated.
3 Year Limited Warranty.
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | FJ-BOX-S | liteharbor | 1 MB | 218 |
