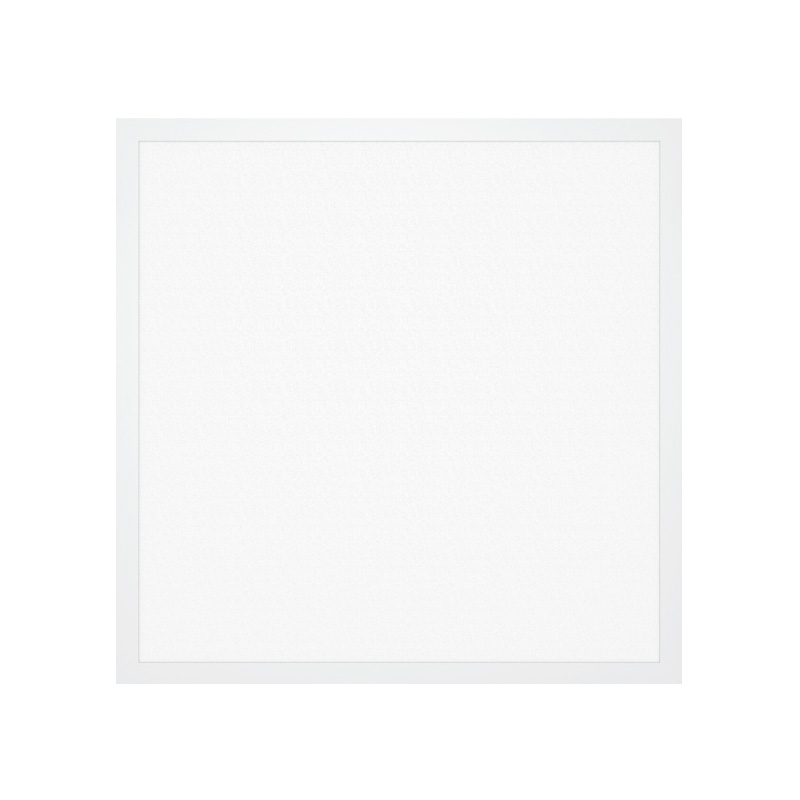

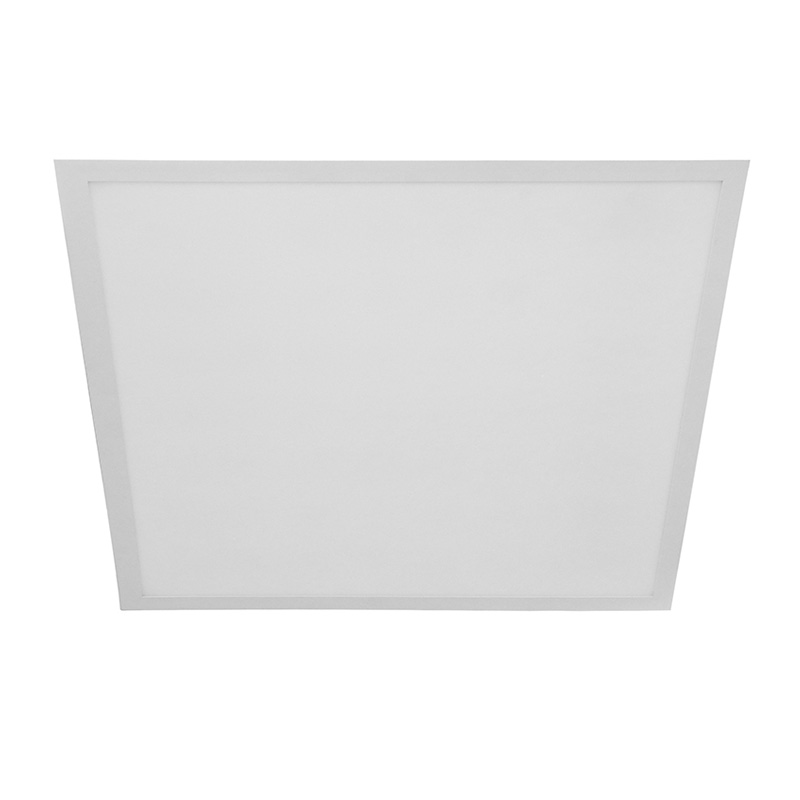

POE Solution 600 * 600 Back-lit LED Panel Light With Power/ CCT Tunable For Office Lighting
ITEM No.: DGL-P6628-B
Panel Light Name : 600 * 600 LED Panel Light
Wattage : 35W
Lumens : 3400LM
LED Type : SMD2835
Dimming : Dimmable
Size : 600 * 600
Share this:
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
Overview
LED panel light is a kind of top grape indoor lighting product which is composed of a number of high-brightness LEDs. Its unique structure design, side view emitting, uniform plane emitting effect which is formed after the light go through the high-transmittance LGP and diffusion plate, good illumination uniformity and soft light which is comfortable but bright, can relief eye fatigue effectively, and prevent radiation. It will not stimulate the skin of pregnant women, elders and children. The lamp design is simple, beautiful and luxurious. It not only has good lighting effects, but also brings a feeling of beauty. It is a new, top grade, and fashionable indoor lighting luminaire.
Features
- Power over Ethernet(POE) Lighitng Solution option
- 2.4G Wireless CCTTunable.
- Power & CCTTunable.
- Without LGP, never turn yellow.
- Isolated driver, PF>0.9, THD≤15 %
- Super bright SMD2835 LEDs, LM80 rated Ra>80.
- Lumen output: 130LM/W
- AC120-277V or AC120-347V, 0-10V dimmable.
- Non-flicker, no dark spot, protect your eyes.
- Ideal replacement for traditional troffer with over 80% energy saving.
- Back-lit technology diffuse reflection, uniform and soft light, no glare, no humming, no flare, no direct attention, effectively alleviate eye fatigue, more healthy use.
- Newest LGP technology, higher luminous efficiency.
- Leading LED driver design, overlong lifespan.
- Delicate structure design, ultra thin and ultra light.
- Simple, fashionable and elegant appearance.
- Easy installation,can replace the same size of ceiling lights or grille lights.
- No lead, no mercury, energy saving and environment friendly.
- IP Rating: IP40.
- Operating temperature: -20°C to 50°C.
POE SOLUTION
Liteharbor’s DGL-P series with single/double ethernet interface“One in” or “One in One out”design. It’s provides Cat 6/Cat 7/Cat 8 Ethernet Cable with UL Listed.PoE technology sends 10/45 Gbps of data and 30W, 60W up to 90W of power budget to devices over Cat7 and Cat8 Ethernet cables for a maximum distance of 100m.
Attribute | Cat 6 | Cat 7 | Cat 8 | ||||||||||||||||
Frequency | 250 MHz | 600MHz | 2000MHz | ||||||||||||||||
Transmission speed | 1Gbps/10 Gbps | 10 Gbps | 25 Gbps/40 Gbps | ||||||||||||||||
Distance | 100m | 100m | 30m | ||||||||||||||||
Number of Connectors in Channel | 4 | 4 | 2 | ||||||||||||||||
Cable Construction | UTP or Shielded | Shielded | Shielded | ||||||||||||||||
Connector Type | RJ45 | RJ45 | RJ45 | ||||||||||||||||
AWG | 24 AWG | 30 AWG | 26AWG |
Application
LED panel light is widely used in commercial lighting, residential lighting and communal facilities lighting such as meeting room, office, office building and so on.
Factory, hotel, restaurant, KTV, supermarket, market, subway station, the station’s waiting room, school, hospital, and all other places need energy saving and high CRI.
Details
Description | DGL-P6628-B | DGL-P12328-B | DGL-P12628-B | ||||||||||||||||||||||||
Size | 24”*24” | 12”*48” | 24”*48” | ||||||||||||||||||||||||
Regular Back-lit Series Wattage | 25W/30W/35W | 25W/30W/35W | 35W/40W/50W | ||||||||||||||||||||||||
2.4G Wireless Back-lit SeriesWattage | 35W | 35W | 50W | ||||||||||||||||||||||||
Edgelit Power & CCT Tunable Series Back-lit Wattage | 20W-25W-30W-35W | 20W-25W-30W-35W | 35W-40W-45W-50W | ||||||||||||||||||||||||
Input: | AC100-277V/AC120-347V, 50/60Hz | ||||||||||||||||||||||||||
Luminous Flux | 3250lm/3900lm/4500lm | 3250lm/3900lm/4500lm | 4500lm/5200lm/6500lm | ||||||||||||||||||||||||
Lumens / Watt | 130LM/W | ||||||||||||||||||||||||||
Dimming | 0-10V Dimminhg/ 2.4G Wireless Dimming / CCT Tunable | ||||||||||||||||||||||||||
Color temperatures | 3000K,3500k,4000k,5000k | ||||||||||||||||||||||||||
Function | ●Wireless dimm ing ●Dimming ●Wireless dimming + Sensing ●Dimming + Sensing ●Wireless dimming + Emergency ●Dimming + Emergency ●Wireless dimming + Sensing + Emergency ●Dimming + Sensing + Emergency ●CCT & Watt Tunable ●CCT & Watt Tunable + Sensing ●CCT & Watt Tunable + Emergency ●CCT & Watt Tunable + Sensing + Emergency |
||||||||||||||||||||||||||
PF: | 0.98 | ||||||||||||||||||||||||||
Working Temperature: | -20℃ – 50℃ | ||||||||||||||||||||||||||
IP Grade: | IP44 | ||||||||||||||||||||||||||
Anti-power level: | Class II | ||||||||||||||||||||||||||
LED Chips: | SMD2835 | ||||||||||||||||||||||||||
Emitting Color: | Warm white/Pure white/Cool white | ||||||||||||||||||||||||||
Certifications: | UL DLC CE RoHS FCC | ||||||||||||||||||||||||||
Lifetime | 50000 Hours |
Quality
Certifications: UL DLC CE RoHS FCC
50000 Hours Lifetime.
5-Year Limited Warranty.
