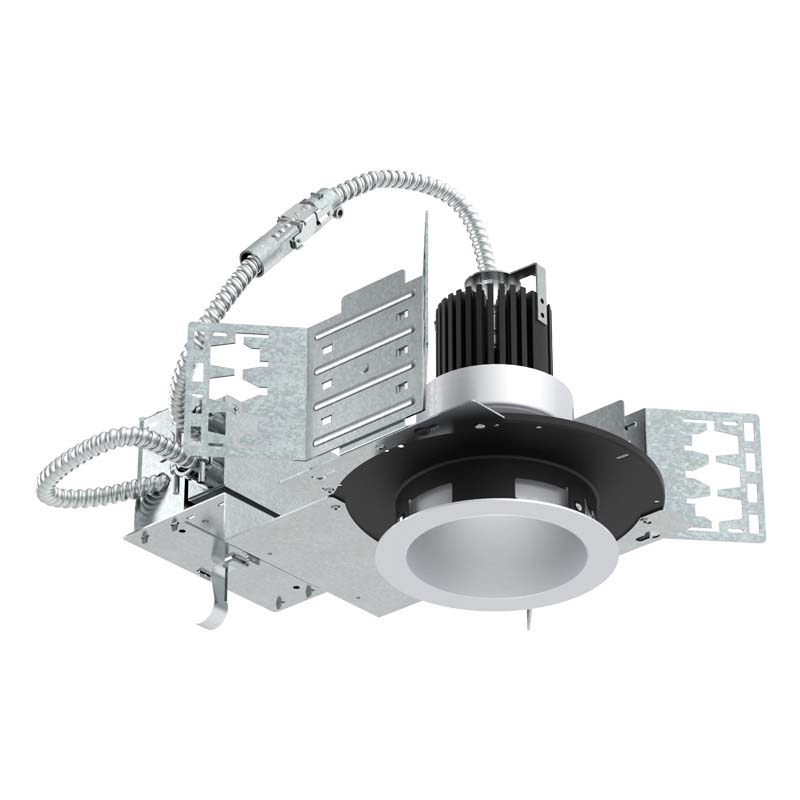

Apartment Lighting 4” Recessed led ceiling lights Architectural

Description
Lighting is smooth and comfortable while using 50% less energy than the common 26W CFL downlight.
Eco-friendly no lead or mercury
Designed to install into an existing downlights mounting frame and convert them into energy efficient led downlights to save anywhere from 35% up to 75% on energy cost.
Idea suited for use in commercial, retail and other architectural applications
Available with dedicated Emergency Battery Back-up

Reflector
High quality reflector with 1.2mm thickness
Optional painted white flange is available

Reflector Assembly
Reflector easily wires to dedicated frame with locking quick connect

LED Module
Cree true white® technology available
CRI>80%
Color temperature 3000K-5000K
Rated for 50000 hours at 70% lumen output
No heat, mercury or UV

Electrical System
Thermal protection guard protects the LED module from overheating and will dim LED module if necessary
PF>9.50/60Hz
Fully dimmable down to 10% of initial light output with a 0-10 Volt dimmer

Wattage

20W Max.

Color Temperature

3000K – 5000K

Lumen

1250-1500LM

Frame
Constructed from 16-gauge steel, die-formed construction for max heat dissipation and rust protection.

Clearance
Frames require a minimum clearance of 3” ring from thermal insulation and 1/2” from adjacent building component.

Mounting
Designed to install into an existing downlights mounting frame and convert them into energy efficient led downlights.
Flex is designed to attach into existing junction box.
Vertically adjustable universal mounting brackets accept flat bar hangers, conduit or C channel.
The reflector assembly is held in with 4 “butter-fly” spring clips.
Reflector assy quickly attaches with lockable quick connect. Hanger bars ordered separately.
Compatible with C-channel, flat bar wood joist bar hanger and EMT

Junction Box
Plaster frame integrated 29 cubic inch 0.064″ thick galvanized steel
Provided with four ½” knockouts, one ¾” knockout and four Romex knockouts with true pryout slots and strain clamps. Designed for straight through conduit runs.
Electrical connections are made through a single junction box door.
Green wire provided for installation with ground wire fed through PVC pipe conduit.

Thermal Protector
External thermal device is located on the junction box wrap.

Driver
The LED driver is mounted to the J-box cover and is accessible from below the ceiling.
Rated for 50 to 60Hz at 120V/277V input
Produces less than 20% THD

Listing & Warranty
ETL listed to US and Canada standards for wet locations
5-year limited warranty
