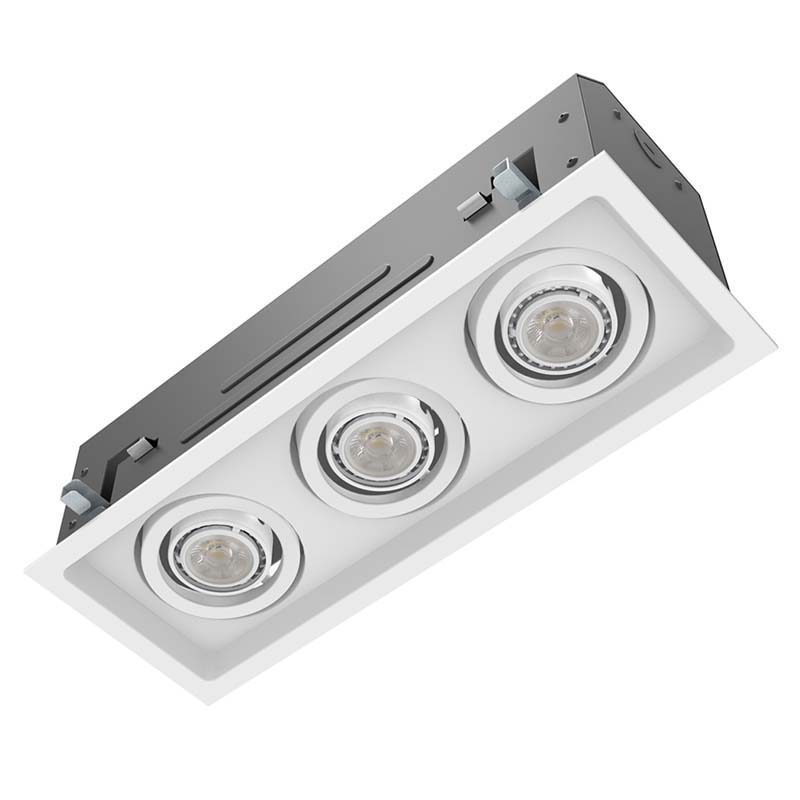

Residential 3-Lamp Remodel GU10 LED Mini Multiple Downlight
/
/
/
/
/
Residential 3-Lamp Remodel GU10 LED Mini Multiple Downlight

Residential 3-Lamp Remodel GU10 LED Mini Multiple Downlight

ITEM No.: G4013-E-R-GU10
Series : LED Multiple Downlight
Light Source : GU10 LED
Input volt : 85-265V AC
CCT : 2700-6500k
Material : Gauge Steel
Trim Options : Trimmed or Trimless
Trim Baseplate : Open or Closed Design

Description
Mini LED Multiple Spots for remodeling and new construction applications for residential and commercial environments. The Multiple Spots are marketed as complete units including the housing and trim. Available as one, two and three-light configurations, each spot is individually adjustable and provides a 30-degree visual cutoff for glare control.

Features
Individually adjustable luminaries
Complete unit includes housing & trim
All housings are Non-IC rated
30° vertical tilt, 360° horizontal rotation

Construction
Trim and housing are constructed of Gauge Steel.

Mounting
Available in 12.7mm-38.1mm thick ceilings
Fix the lamp by locking screw From below the ceiling
When Installing or removing the fixture, it won’t damage the ceilings

Light Source
High output GU10 LED

Dimming
Dimmable to 10% with most brand dimmers.

Input Voltage AC 85-265V 50/60Hz
Rated Power 8W/Lamp
Luminous Efficiency 70 LM/W
Lamp GU10
Socket GU10
Color Temperature 2700-6500K
Material Gauge Steel
Power Factor > 0.98
CRI Ra80 / Ra90

Product File Download

# File Added by File size Downloads
1 pdf G401X-E-R-GU10 liteharbor 424 KB 285
