1 Inch Super Thin Trimless Replaceable 16W Square LED Mini Spotlight Commercial POE Lighting

Description

X-Light Ⅰseries, it provides a quick and convenient installation method, provides the solution of the edge of architecture lighting, and makes a big breakthrough in the use and design. 1 inch (∅25mm) of the light-emitting surface the size to achieve the ultimate.

Features

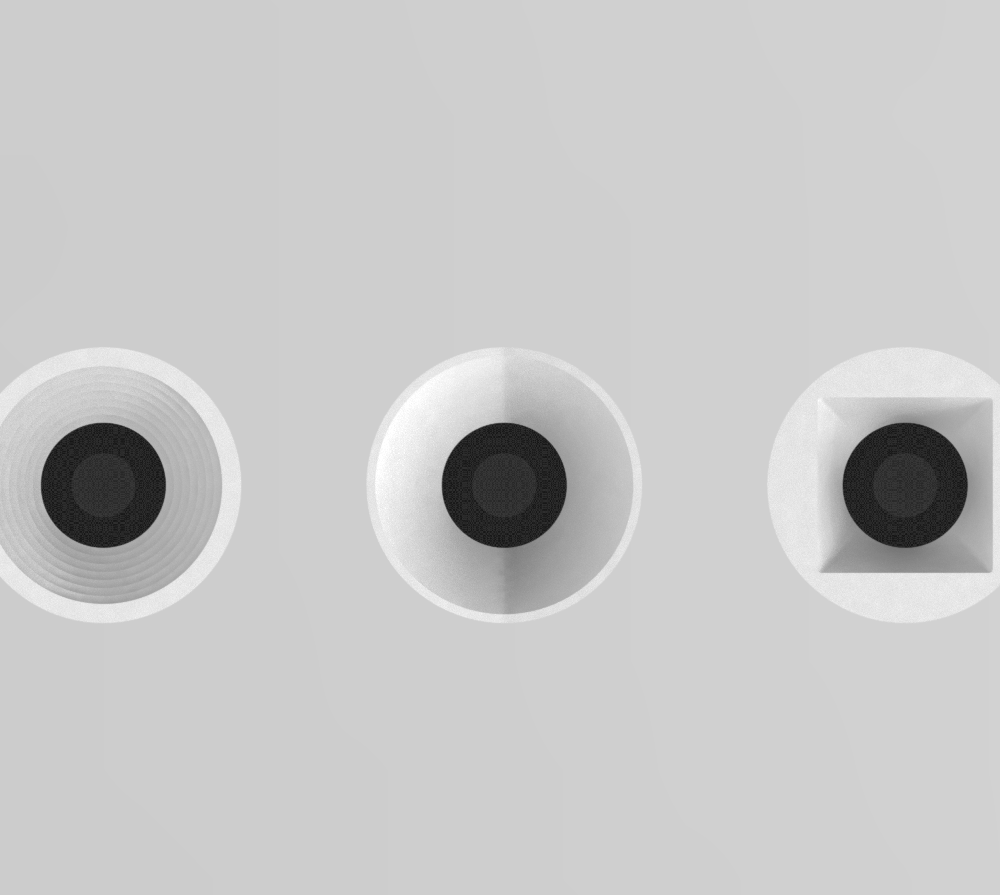

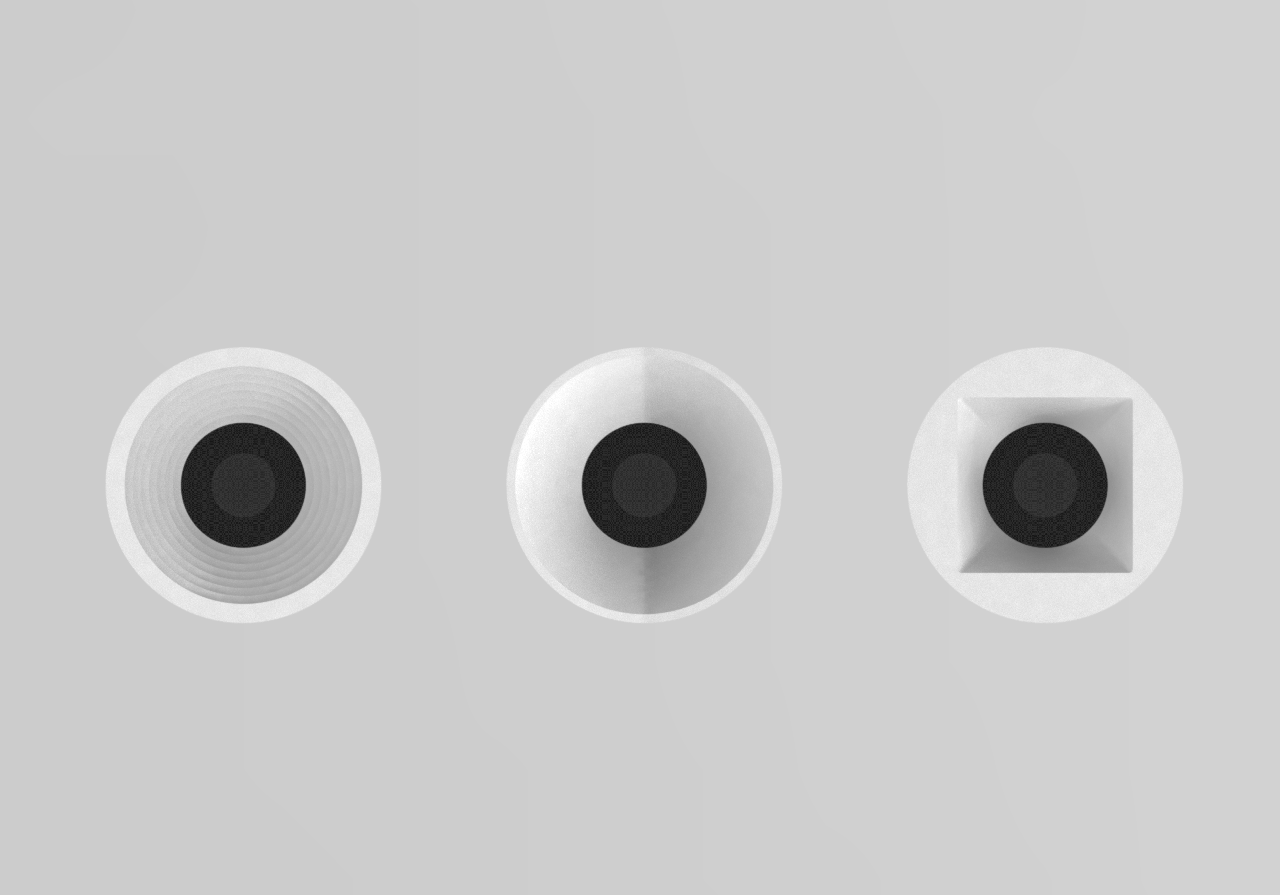

– X-light-C with square and circular light emission effect.

– Use big brand COB light source with high luminous efficiency (140lm/w) and long service life (80000 hours).

– Professional light distribution devices, no glare, perfect control light, spot even transition.

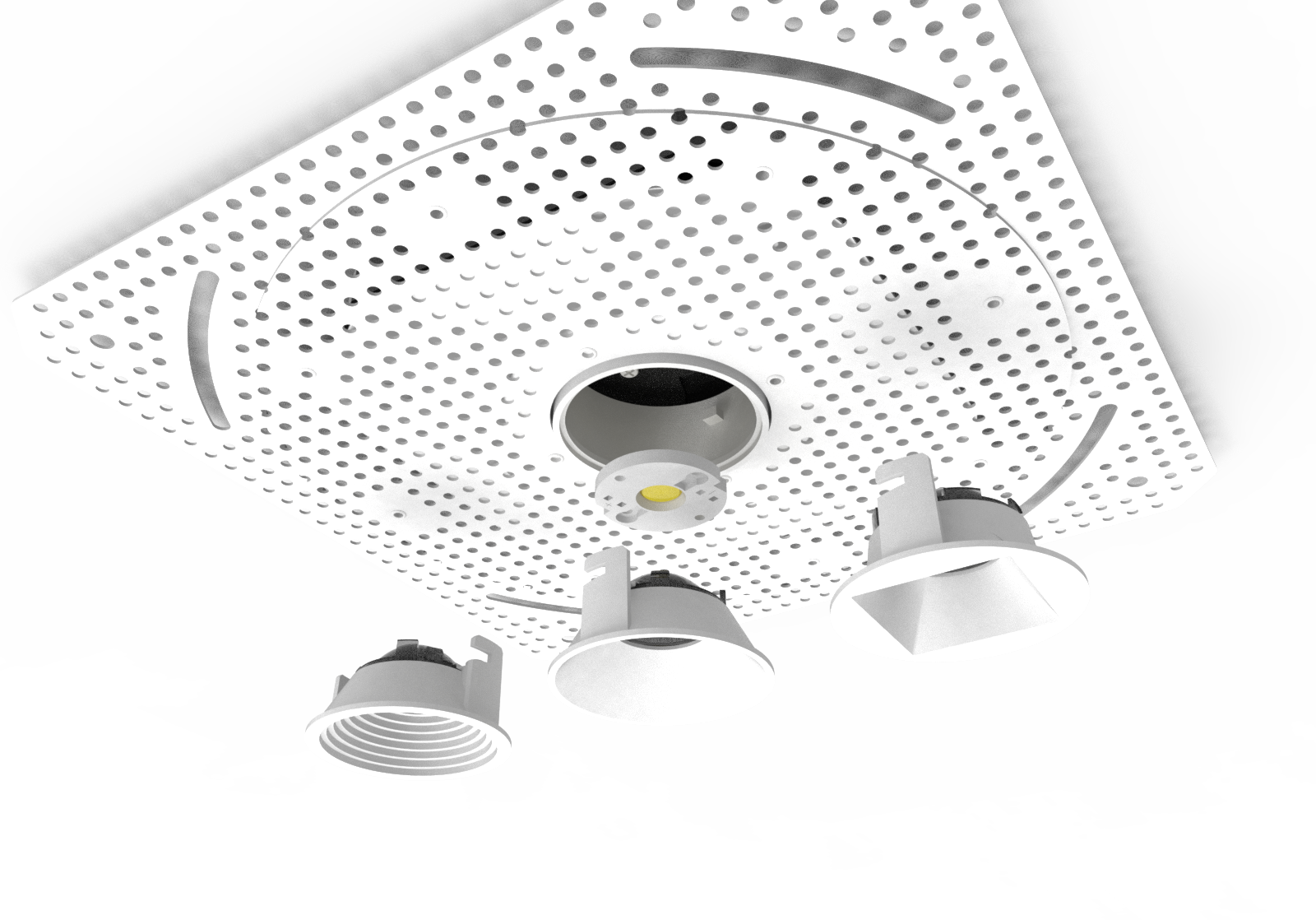

-Easy to change light sources,and multiple trim can share one housing.

Lamp Body

– Ultra thin, the height of the whole lamp is only 23mm .

– Ultra small light emitting surface, only 1 inch (∅25mm).

– All-in-one die casting lamp body with unique appearance.

– Double-sided heat dissipation, can be made into IC type directly.

– The anti-pull device is hidden inside the lamp body.

Power Supply
– Wide voltage input 120-277VAC, 50/60 Hz, 0-10V dimming, constant voltage and constant current mode.
– The power has UL listed, can be applied to a variety of applications.
– Integrated power supply, easy to replace the power supply.
– The input voltage of each lamp is 42V/24V, the load termin can be used independently.
– Each luminaire is connected in parallel, one power supply can simultaneously control the use of  five lamps.

Mounting And Maintenance

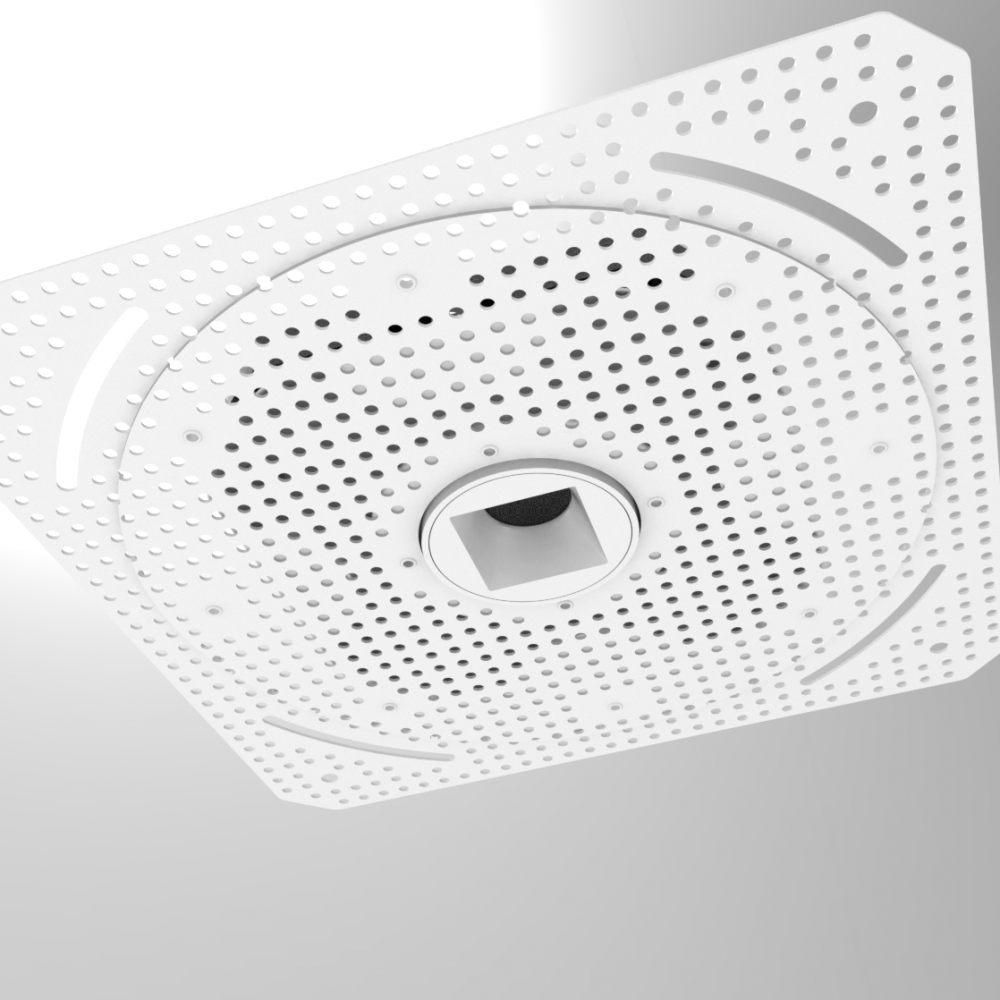

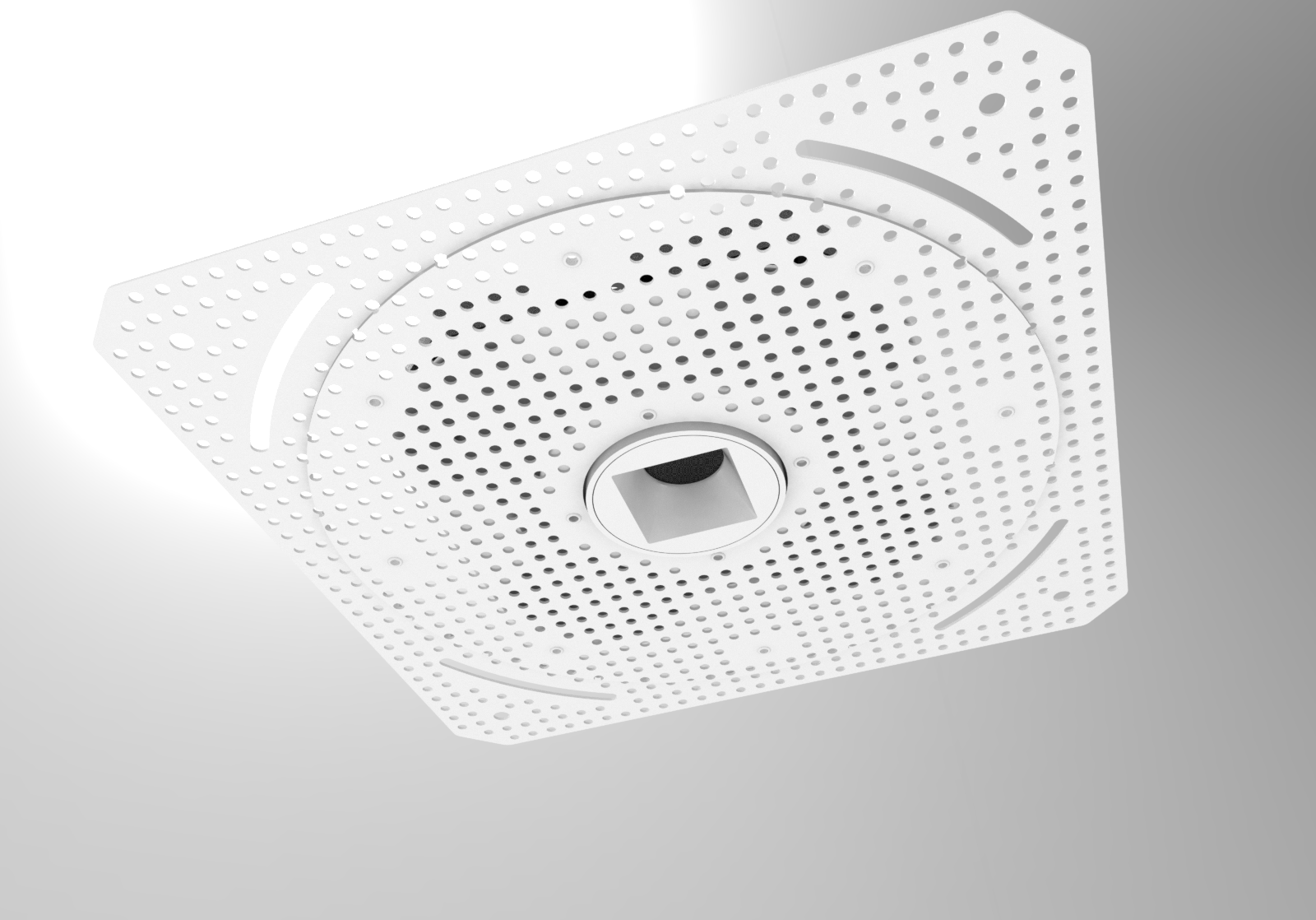

– Remodel and new construction optional.
– Wide range of applications, it can be installed in different thickness of ceiling, is the real universal type downlight.
– Cut-out dimensions 142*142mm .
– The subsequent decoration is also convenient and quick.
– There is no welding between the light source and the power supply, can replace the LED lamp beads according to the  demand.

Lamp
Wattage: 16W/lamp
Input Voltage: 42V/24V
CCT: 3000K/4000K/5000K/6500K
CRI: 80+/90+
Luminous flux: 1400lm/lamp
Light source: COB
Dimming: TRIAC Dimmers 10%-100% (120V only)
Life span: 100000Hours
Dimmensions: 235*235*29mm

Power Supply
Wattage: 120W Max .
Input Voltage: 120-277V AC
Frequency: 50/60 Hz
Output Voltage: 42V/24V
Electric current: 3.4A Max .
Power Factor: >0.9
Dimming: TRIAC Dimmers 10%-100% (120V only)

POE SOLUTION

Liteharbor PoE solution with single/double ethernet interface“One in” or “One in One out”design. It’s provides RJ45 wiring system suitable for CAT5, CAT6, CAT7, CAT8 Ethernet Cable with UL listed . PoE technology sends 10/45 Gbps of data and 30W, 60W up to 90W of power budget to devices over Cat7 and Cat8 Ethernet cables for a maximum distance of 100m.

Applications

Apply to Recreation club, offices, hotels, clubhouse etc.

Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
5 Year Limited Warranty.
