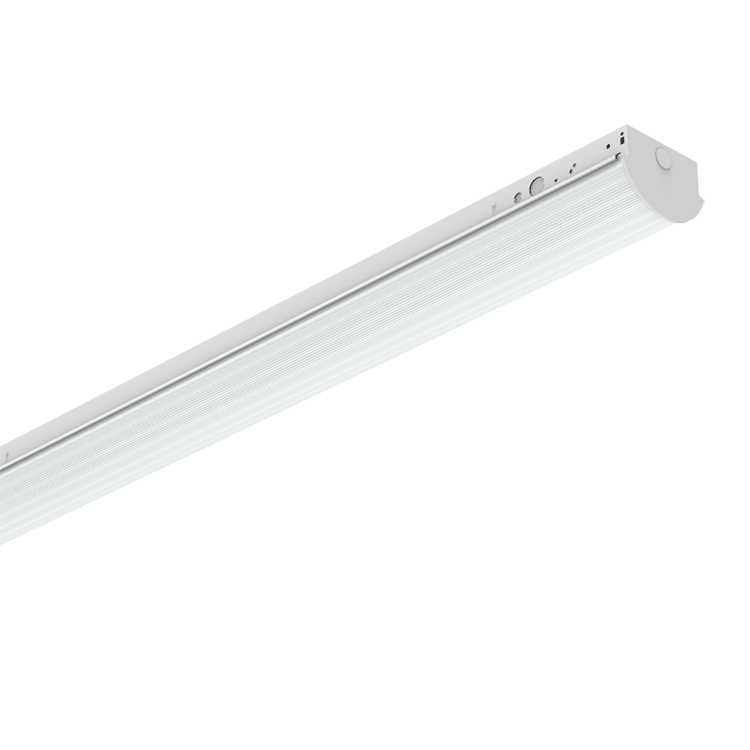

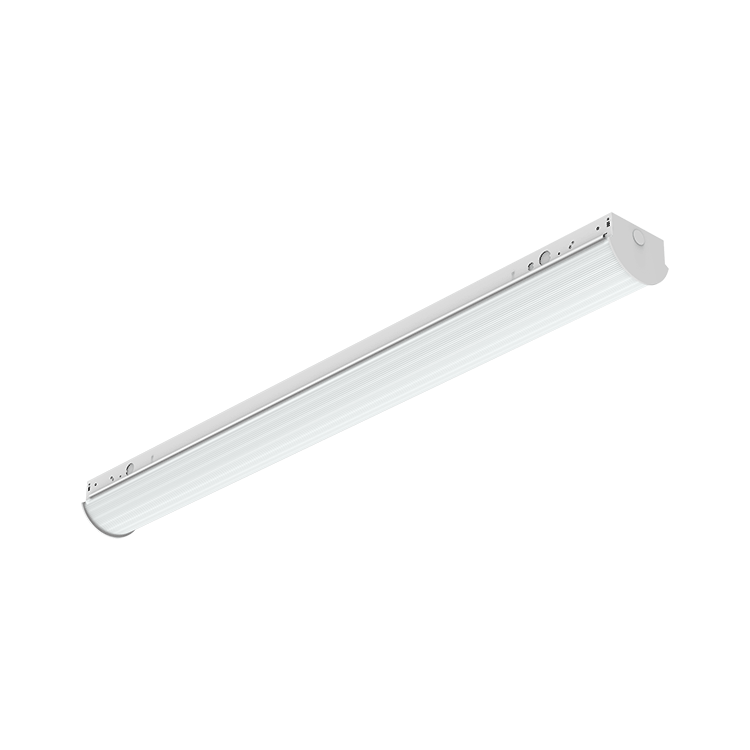

4FT Surface Mounted 40W/80W LED Linear Strip Light Parking Lighting

Features
ST-4/ST-8 is a high lumen, thin, beautiful appearance, safe and reliable, convenient installation and easy maintenance linear light,
is an industrial grade luminaire which is ideal for retail, commercial and industrial applications.
Using imported high transmittance pc cover, retain color for long time.
Available in 1×4 and 1×8 models. Beam Angle :120°
Emergency system is available.
Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.
Standard dimming control: 0 ~ 10 v dimming.
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location.
Application: suit for the garage, warehouse, basement and car parks and other places to provide general illumination.
Warranty: 5-year limited warranty on LED and Driver.

Construction
Die formed, 22 gauge, cold rolled steel designed for high strength.End caps snap in for easy installation and maintenance.
In addition, the end cap can be used as a joint aligner for continuous row mounting.

Light Source
Using the energy-saving highlighting 2835 SMD LED light source.

Distributed LED array in a variety of lumen output packages.

LED color is available in 2700-6500K. Module is replaceable.

Mounting

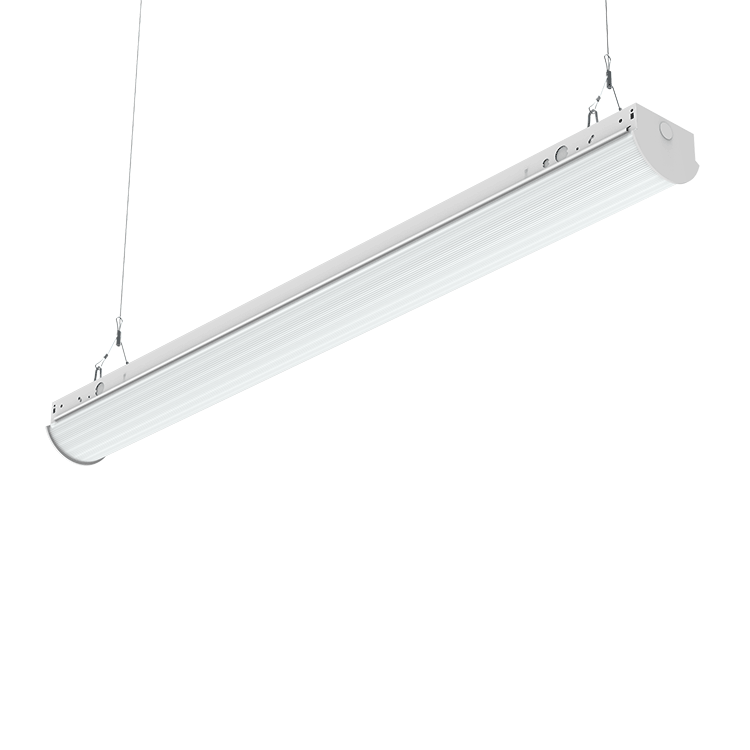

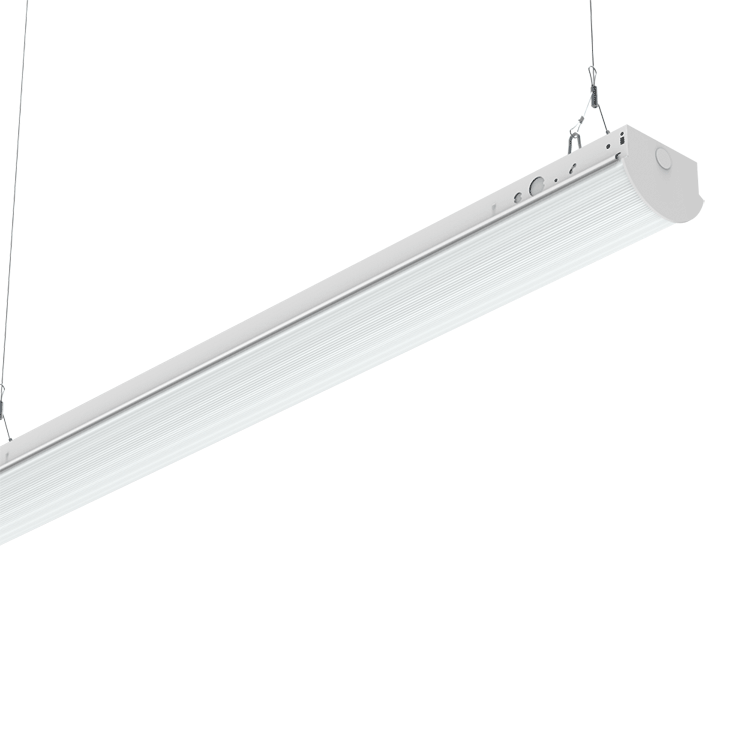

Luminaires can be surface mounted or suspended, individually or in continuous row. Fixtures easily snap
together for long continuous rows.

Driver
Using isolation constant-current drive power, is the guarantee of security, stability and no flicking.

Specification

Packing
Inner box: 140*80*1225mm 1 pcs/Box     Outer box: 124*29.5*18.5CM   4PCS/CTN

Product File Download

#	File	Added by	File size	Downloads
1	ST-4 & ST-8	liteharbor	133 KB	253
