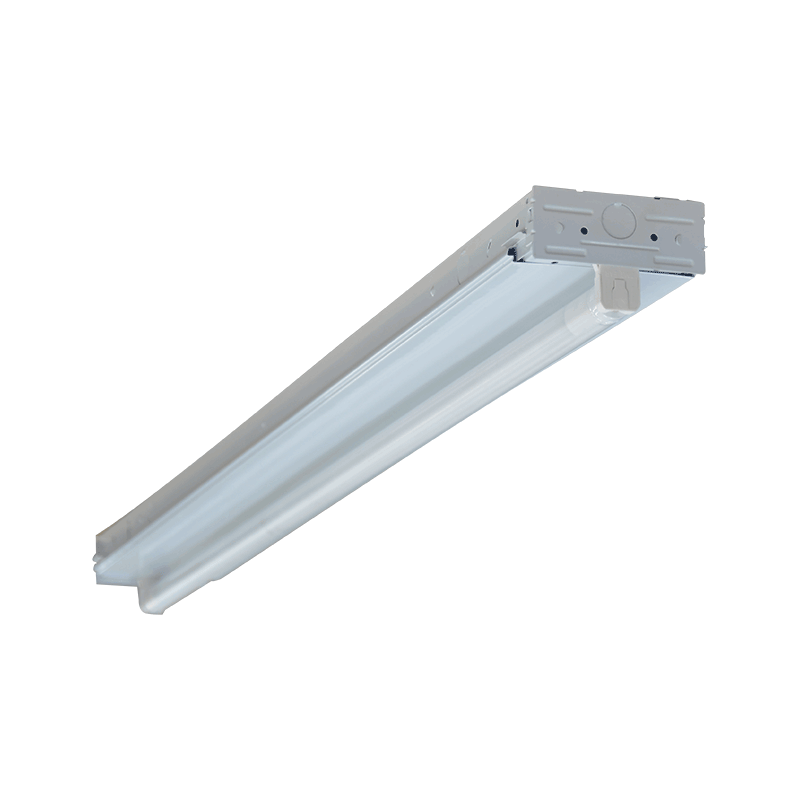

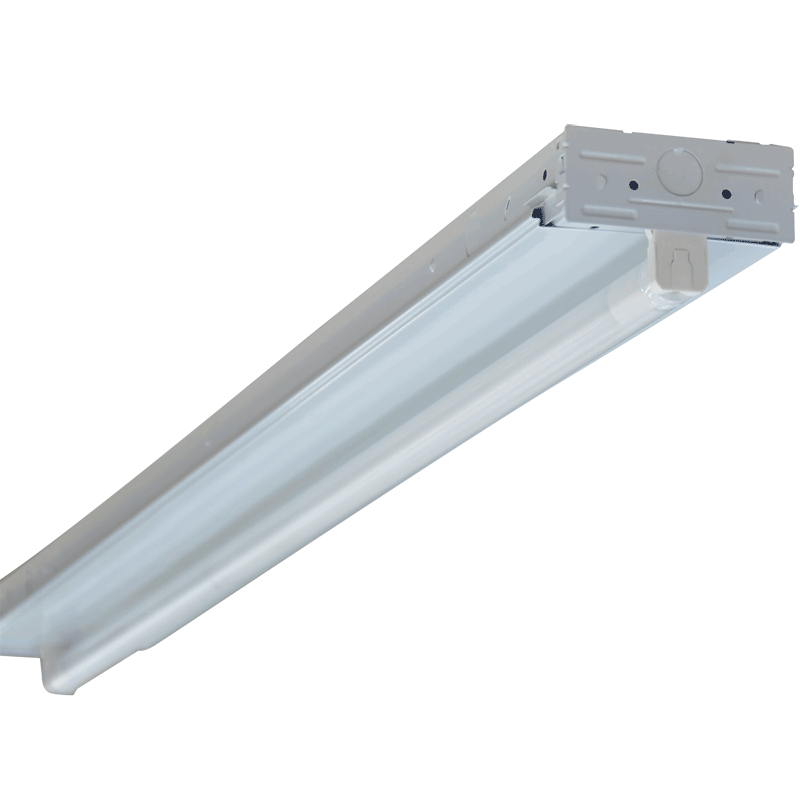

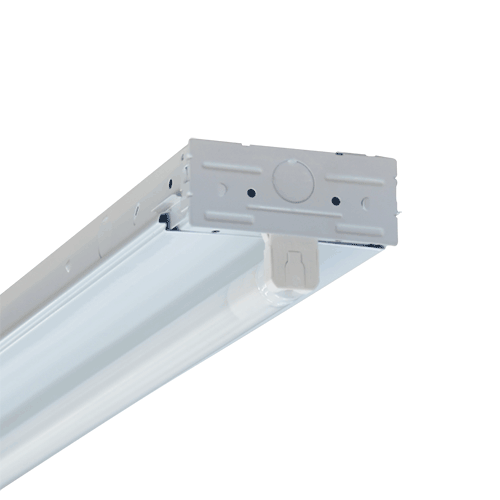

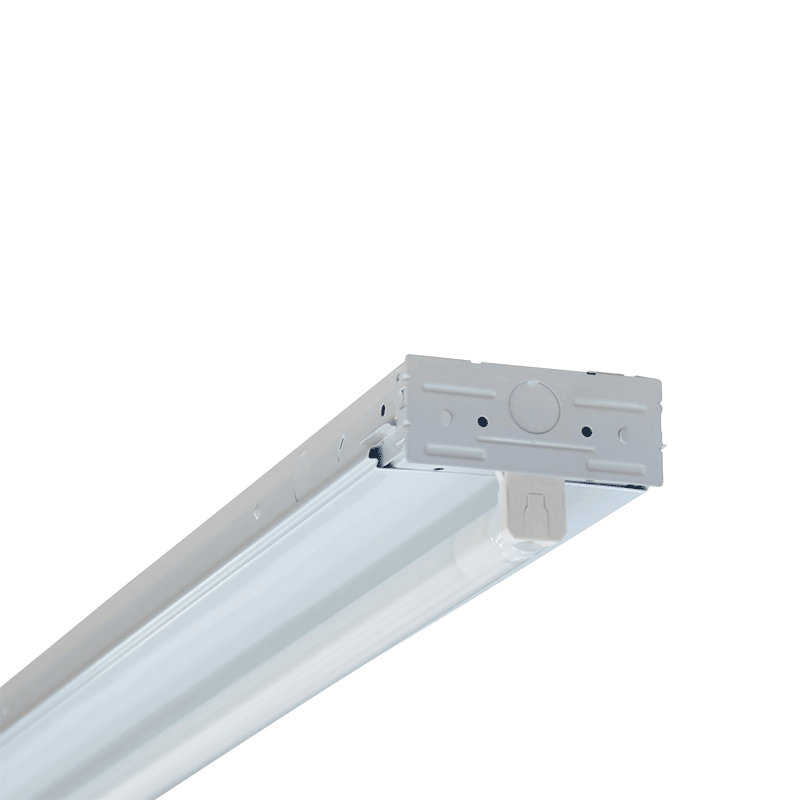

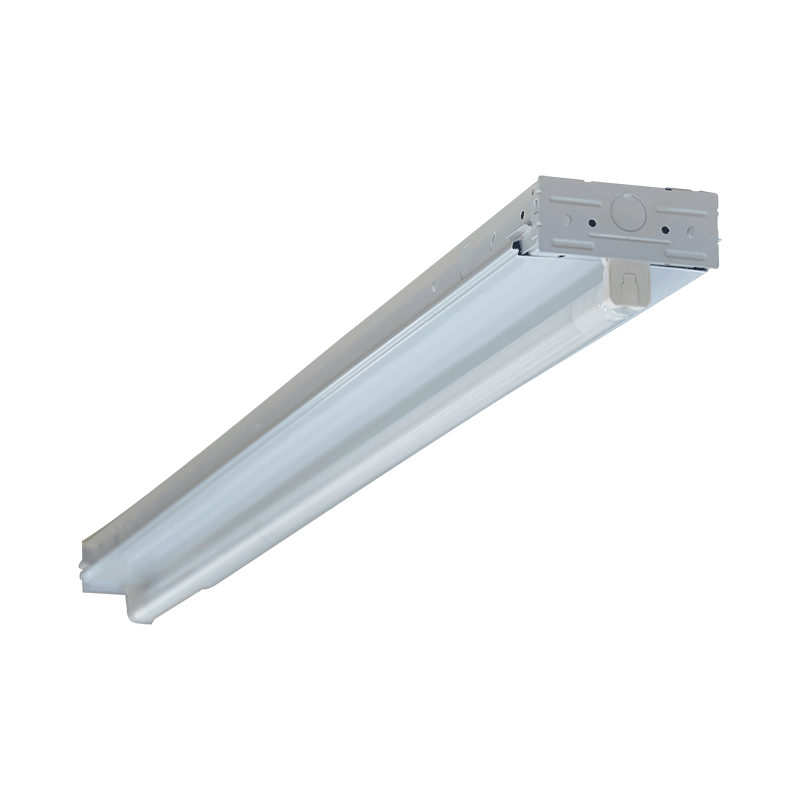

Suspended/Surface Mounted 4ft Ready Strip Light for T8 Tube Surpermaket Lighting
ITEM No.： DGL-4WT81/DGL-4WT82
Power : 18W*1 Tube Or 18W*2Tube
Voltage : 120V/277V AC
Length : 4Foot
Dimmable : NONE/0-10V Dimming
Certification : ETL listed
Features

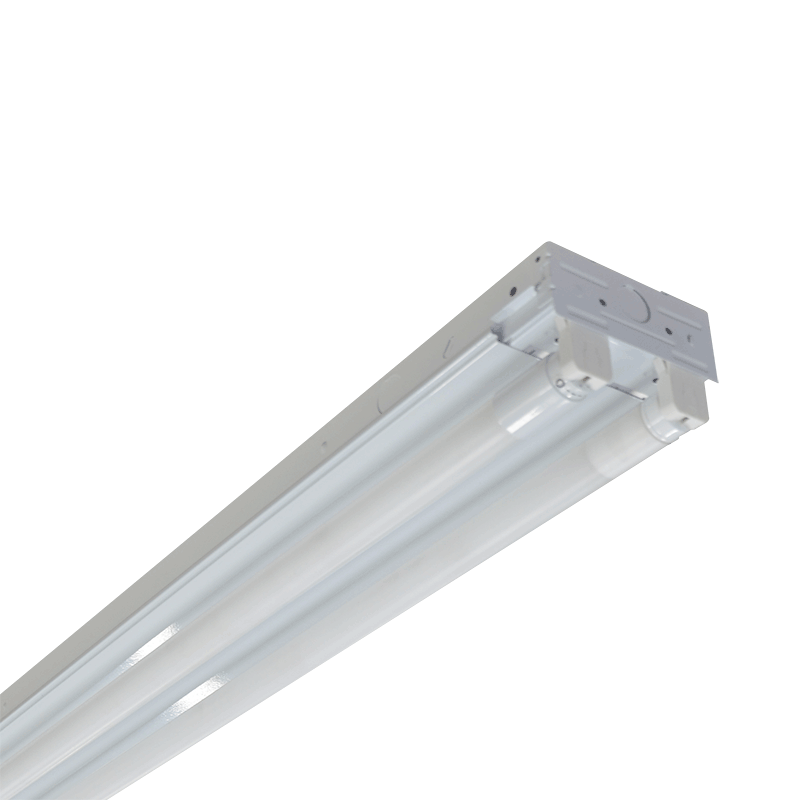

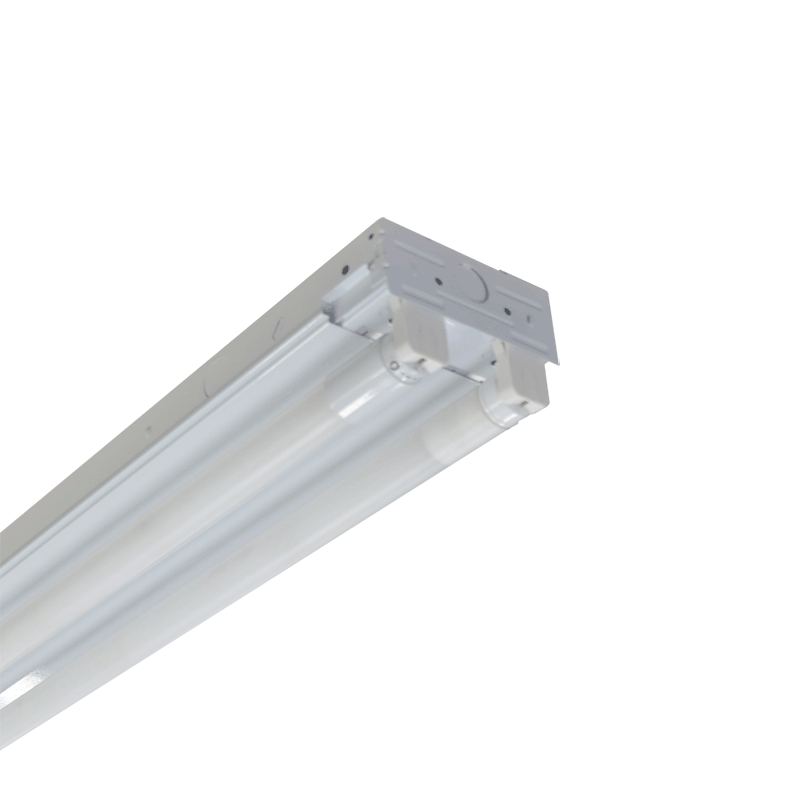

The product is a single tube or double tube T8 LED tube, providing high lumen, thin, elegant in appearance,safe and reliable, easy to install and maintenance linear Light.
This series product is an industrial grade luminaries which is ideal for retail, commercial and industrial applications.
Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.
Single socket or double socket for options
Available in 1×4
IP Grade: IP44
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location.
Construction
Die formed, 22 gauge, cold rolled steel designed for high strength.
End caps snap in for easy installation and maintenance.
In addition, the end cap can be used as a joint aligner for continuous row mounting.
Mounting
Luminaires can be surface mounted or suspended, individually or in continuous row.
Fixtures easily snap together for long continuous rows.
Application
Suit for the garage, warehouse, basement and car parks and other places to provide general illumination.
Specification
| Power | 18W/Tube |
| Voltage | 120V/277V AC |
| Length | 4 Foot |
| Lumens | 2000 Lumens/Tube |
| Beam Angle | 120° |
| CRI | 80+/90+ |
| Dimmable | NONE/0-10V Dimming |
| CCT | 2700-6500K |
| Certification | ETL listed |
Light Source is not included
Packing
4 Foot Outer box: 13.3*10*124CM 2PCS/CTN
8 Foot Outer box: 13.3*5.3*246CM 1PCS/CTN
