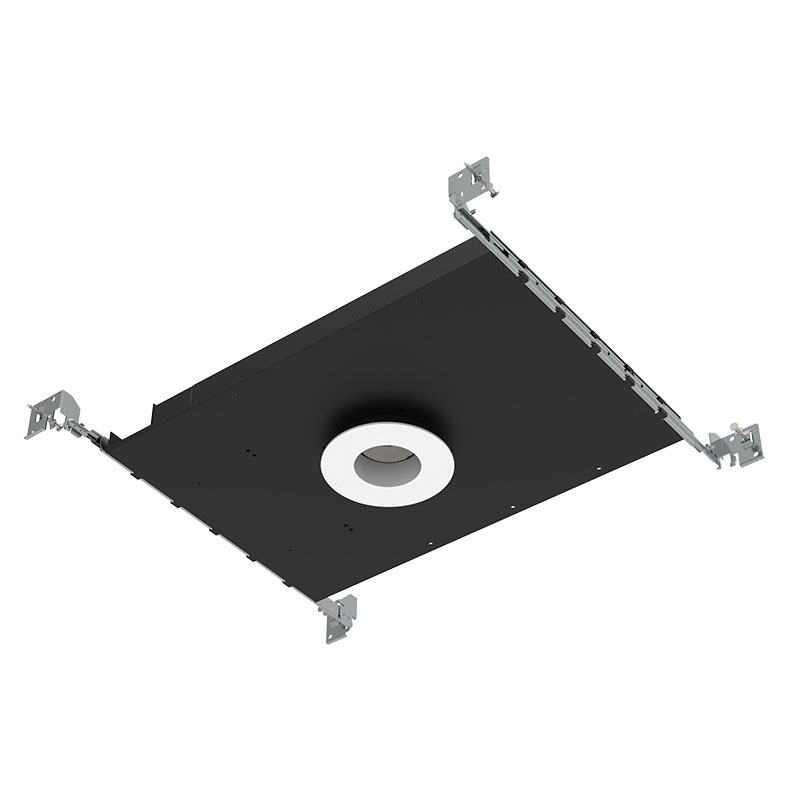

Villa lighting 3” Trimmed Shallow Round COB LED Recessed Downlight Kits
ITEM No.： A3-M-R-3-TL
Downlight Name : COB LED Recessed Downlight

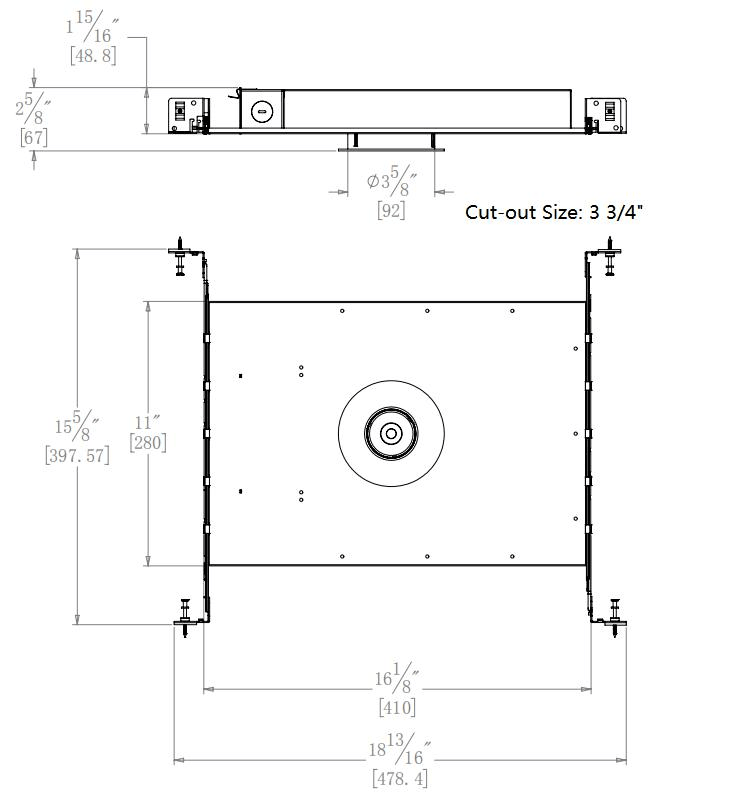

Downlight Size : 3 inch
Downlight Wattage : 12 / 15 / 20 W
Downlight Lumens : 1000 1300 1600 Lumens
Downlight Beam Angle : 12 / 24 / 36 Degree
Aperture : Round
Features
– LED Downlights with shallow housings for recessed LED lighting.
– The finished ceiling is 2 or 3″ high and can help you easily combine quality lighting with piping, building infrastructure and
electrical equipment in any ventilated space anywhere.
– Meet the new thinnest LED housing in the world, measuring less than 3″ tall from top to bottom
– 850 to 1150 delivered lumens, 5 classic white color temperatures (2700K, 3000K, 3500K, 4000K, 5000K)
– Isolated constant current drive power supply, safe and stable guarantee without strobe, standard dimming control, matching
most dimmers.
– Beam angle: 12/24/36°
– Available in trimmed or trimless.
Ceiling Thickness
– Accommodates ceiling thickness 1/2″
– Delivered lumens are maintained through entire range
LED Light Engine
Optional branded COB LED chips
Input AC 120V 230V 277V ( 90-305V is available)
12W 15W 20W
1000 1300 1600 Lumens
2700K, 3000K, 3500K, 4000K and 5000K at 80+ CRI
2700K, 3000K, 3500K, 4000K and 5000K at 90+ CRI
PF > 0.98
Dimmable options: NONE, TRIAC or RD 0-10V
LED mounted to die-cast / extruded aluminum heat sink w/ active cooling
50,000 hours average rated life at 70% output
Optics
12° Spot, 24° Narrow Flood and 36° Flood
Applications
Widely used for commercial and residential applications.
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through
5 Year Limited Warranty.
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
A3-M-3, A3-M-3-TL
|
liteharbor | 487 KB | 275 |
