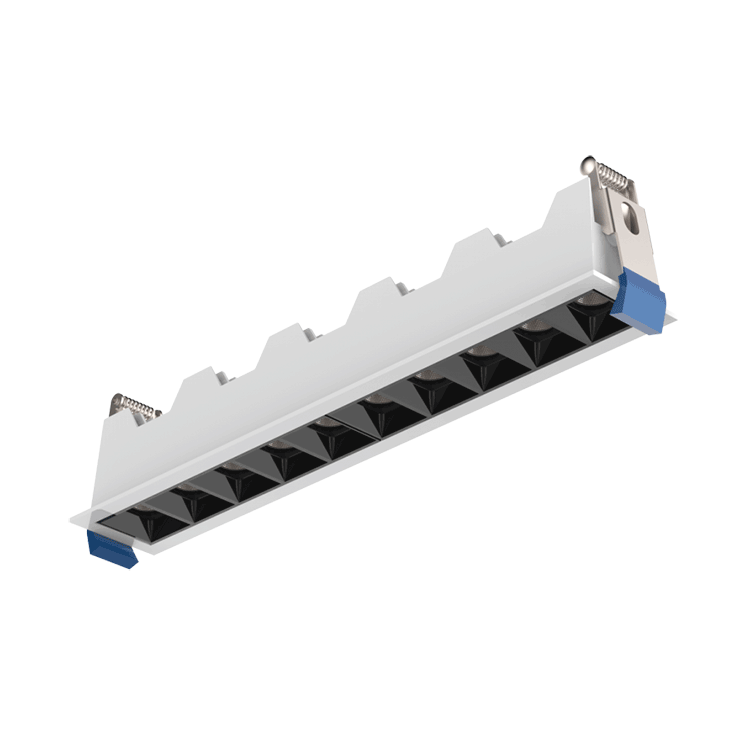

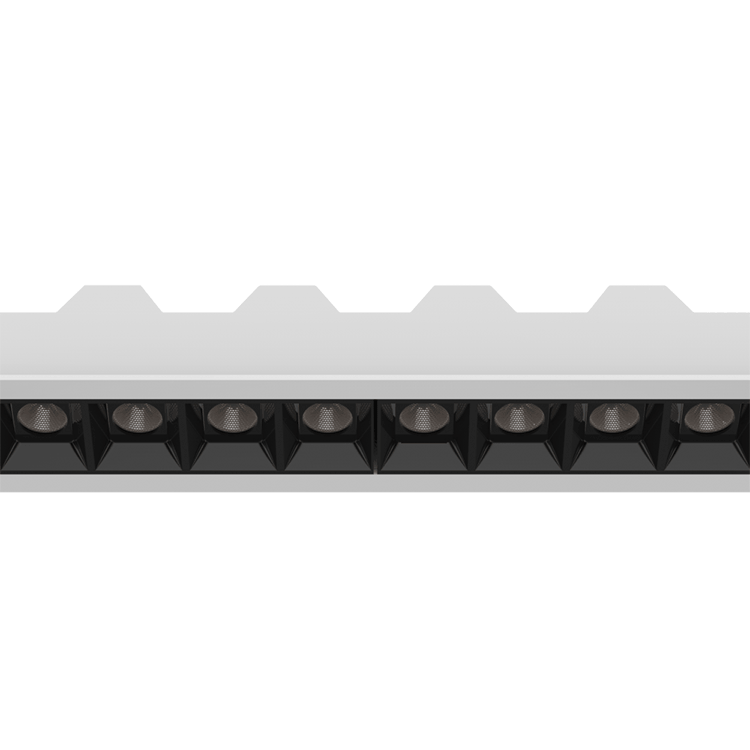

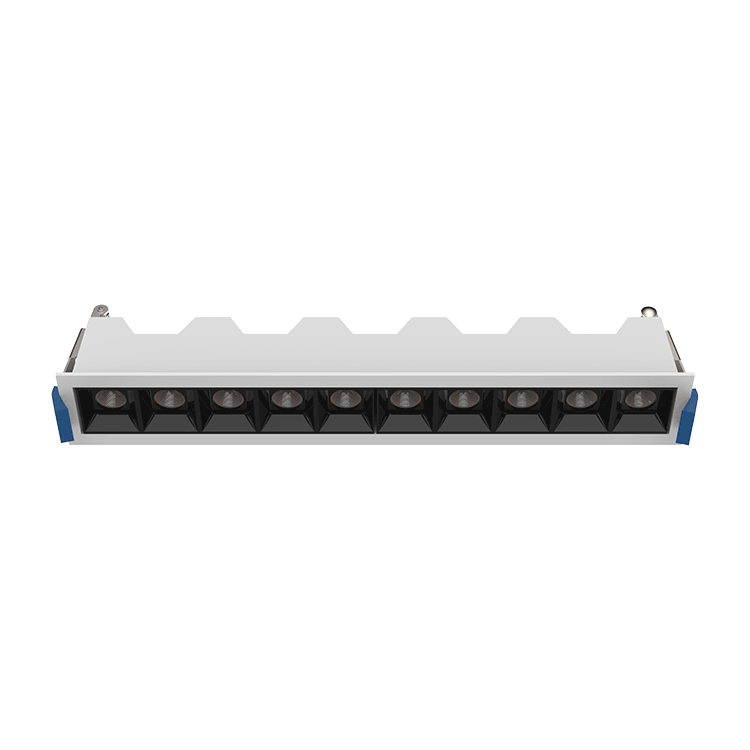

Trimmed/Trimless Vertical Mini LED Multiple Downlight with 10 Lamps

Description
The Mini multiple downlight Series is equipped with1, 2, 5, 10 and 15 lamps. The miniaturized design, die-cast aluminum body, and high-performance acrylic diffuser provide uniform scientific light output for maximum visual comfort.

Features
–  Revolutionary narrow Recessed downlight available in slim trim or trimless.
– The simplified retrofit installation can be used in both new and existing spaces.
– Dimmable with a variety of commonly used drivers.
– Life Rated for 50,000 hours at 70% lumen maintenance.
– Easy installation for new construction and remodel applications.

Specification
– Luminaire efficacy: 65 to 80lm/W
– Source: White LED module (LM-80 tested) 2700K~6000K CRI>90
– Lumen maintenance: 90% of initial lumens at 50 000 hours (L90) (LM79 tested)
– Optics: Low luminance: Spot optic, with pptibeam technology
– Material: Body and Heat sink: Die-cast aluminum, Reflector and Baffle: Thermoplastic

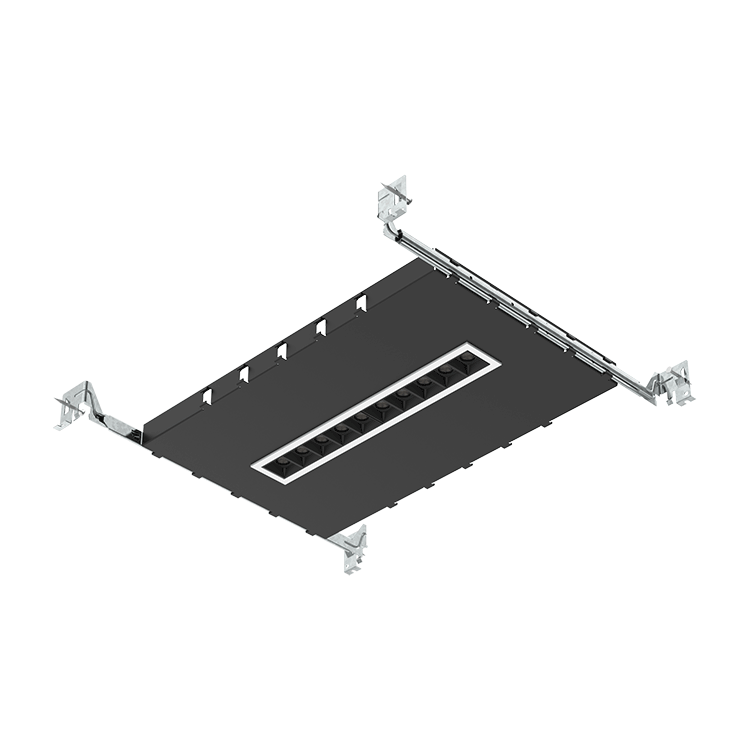

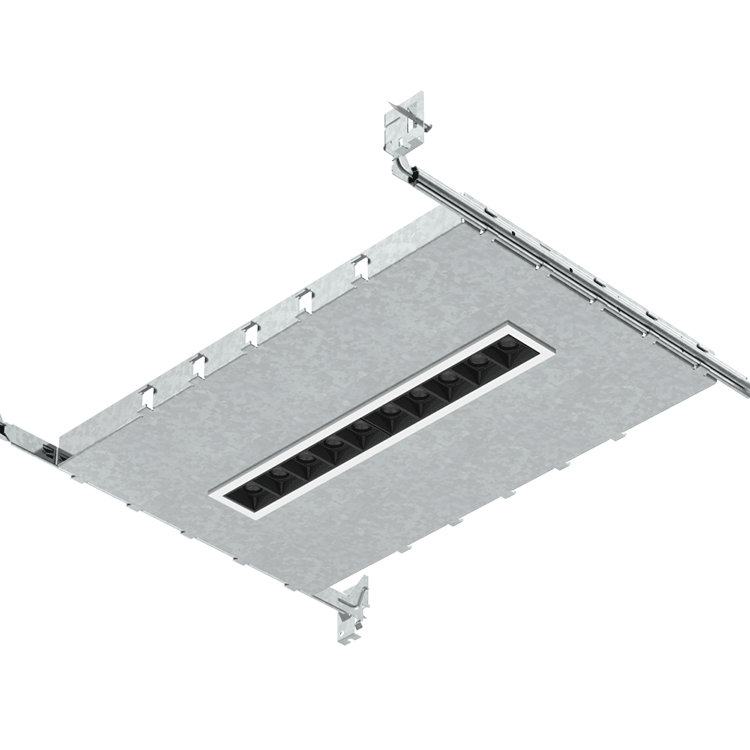

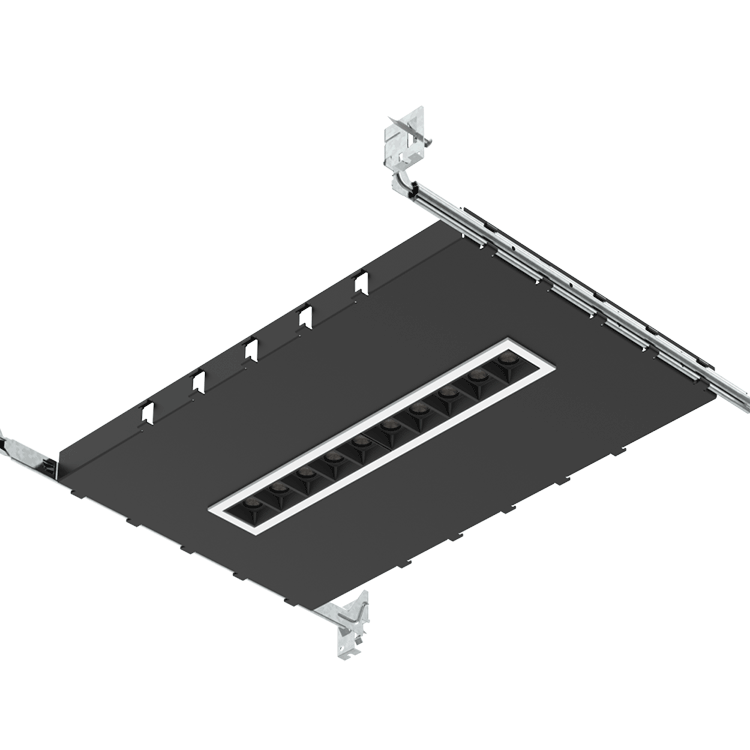

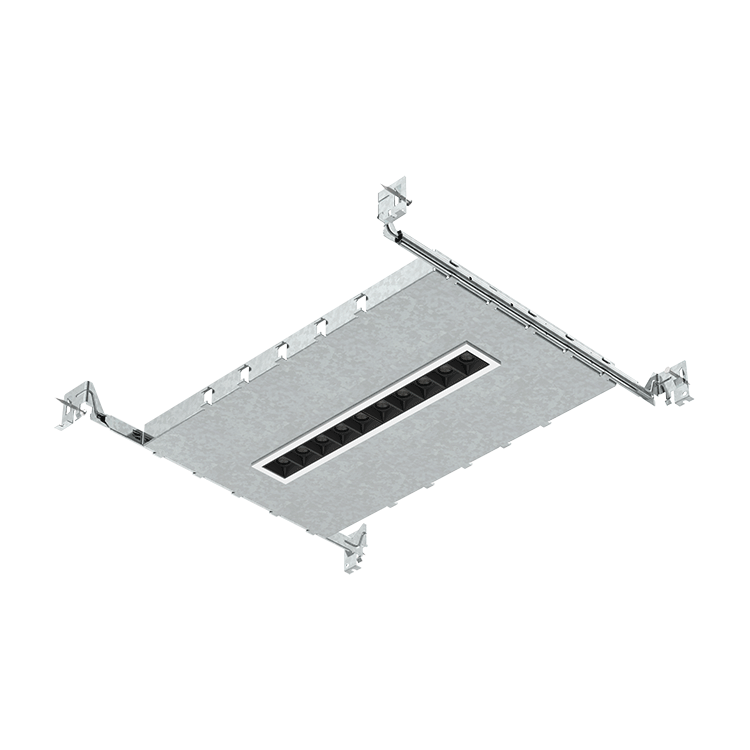

– Mounting: New construction installation or remodel installation

Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
3 Year Limited Warranty.

Applications
Suitable for jewelry stores, boutiques, luxury goods stores, shopping malls and other places that require concentrated lighting
and accent lighting.

Parameter

Product File Download

#	File	Added by	File size	Downloads
1	G4012A-10	liteharbor	891 KB	245
2	G4012A-10-NC	liteharbor	865 KB	245
3	Mini Multiple DownLight	liteharbor	1 MB	426
